| Artikelnummer | N156BGE-L41 |
| Marke | Innolux |
| Größe | 15.6 |
| Anwendung | NBPC |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 200 |
| CR | 650:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |

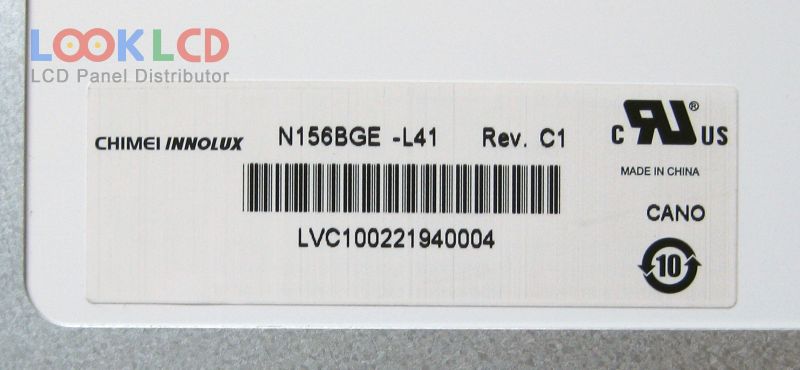

| Panel-Marke | CHIMEI INNOLUX |
| Panel-Modell | N156BGE-L41 21 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.6 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 344.232×193.536 mm |
| Umriss | 359.5×223.8×3.8 mm |
| Formstil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Oberfläche | Glare (Haze 0%), Hard coating (3H) |
| Helligkeit | 200 cd/m² (Typ.) |
| Kontrastverhältnis | 650:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193145% |
| Reaktionszeit | 3/7 (Typ.)(Tr/Td) |
| Blickwinkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |

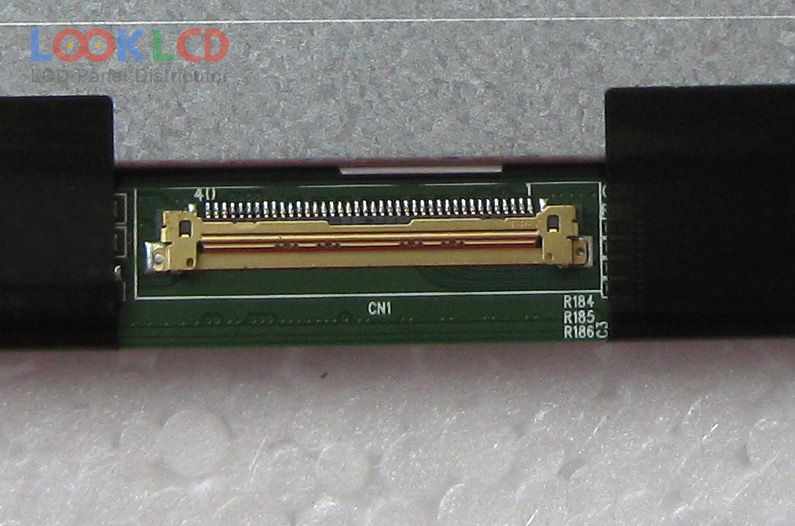

| Signalschnittstelle | LVDS (1 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
