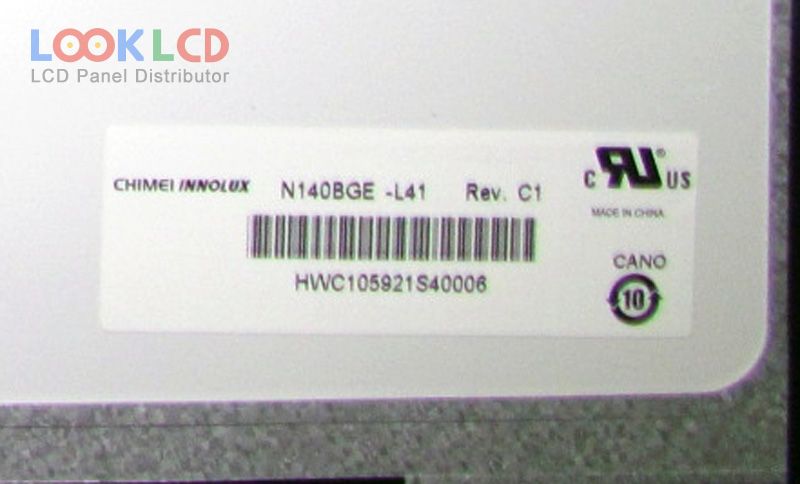

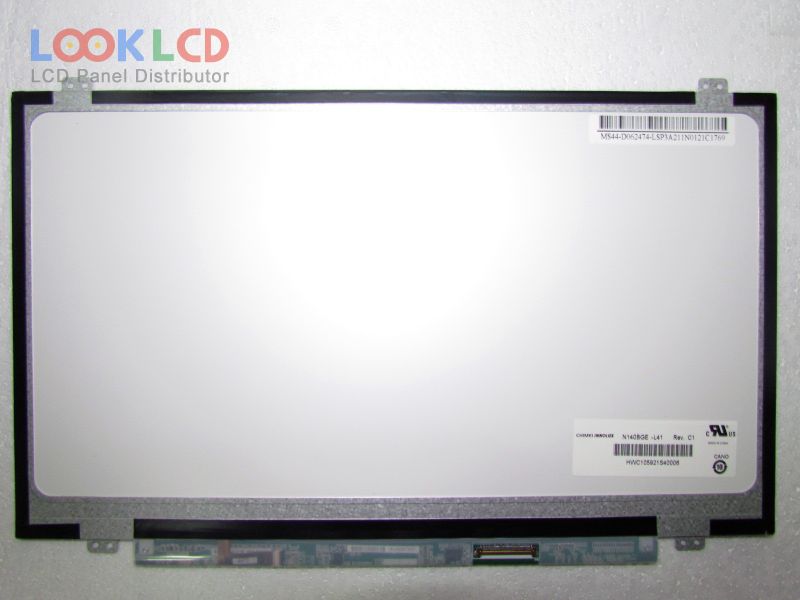

| Artikelnummer | N140BGE-L41 |
| Marke | Innolux |
| Größe | 14.0 |
| Anwendung | NBPC |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 200 |
| CR | 600:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | CHIMEI INNOLUX |
| Panel-Modell | N140BGE-L41 8 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 14.0 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 309.399×173.952 mm |
| Umriss | 320.4×198.6×3.6 mm |
| Formstil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Oberfläche | Glare (Haze 0%), Hard coating (3H) |
| Helligkeit | 200 cd/m² (Typ.) |
| Kontrastverhältnis | 600:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 3/8 (Typ.)(Tr/Td) |
| Blickwinkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 9S4PWLEDEmbedded (LED Driver) |

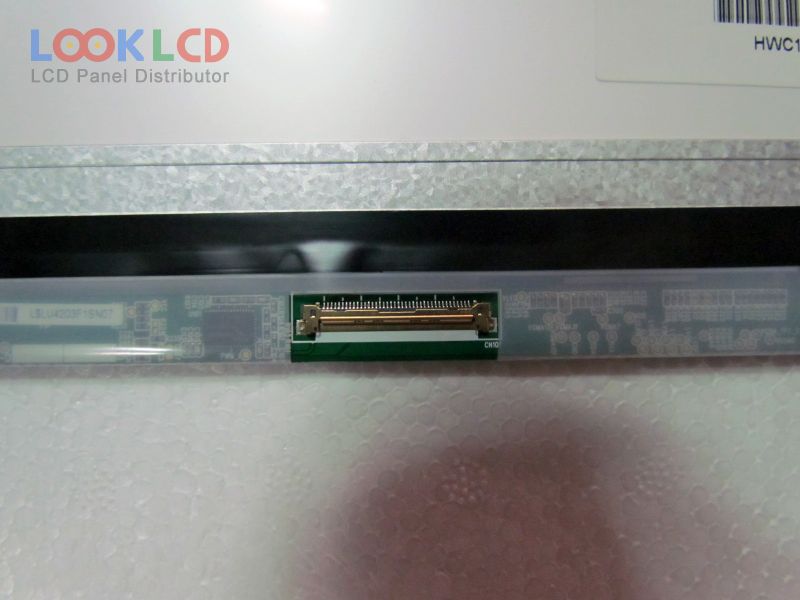

| Signalschnittstelle | LVDS (1 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
| N140B6-D11 | Innolux | 14.0 | 1366×768 |
| N140B6-L01 | Innolux | 14.0 | 1366×768 |
| N140B6-L02 | Innolux | 14.0 | 1366×768 |
| N140B6-L06 | Innolux | 14.0 | 1366×768 |
| N140BGE-E43 | Innolux | 14.0 | 1366×768 |
| N140BGE-EA3 | Innolux | 14.0 | 1366×768 |
| N140BGE-L11 | Innolux | 14.0 | 1366×768 |
| N140BGE-L22 | Innolux | 14.0 | 1366×768 |
| N140BGE-LB2 | Innolux | 14.0 | 1366×768 |
| N140BGK-L33 | Innolux | 14.0 | 1366×768 |
| B140EW01 V1 | AUO | 14.0 | 1280×768 |
| LP101WH1-TLB1 | LG Display | 10.1 | 1366×768 |
| LP121X05-A2 | LG Display | 12.1 | 1024×768 |
| LP140WD2-TPB1 | LG Display | 14.0 | 1600×900 |
| LP141WP2-TPA1 | LG Display | 14.1 | 1440×900 |
| LP141WX3-TLR1 | LG Display | 14.1 | 1280×800 |
| LP171WE2-TLA2 | LG Display | 17.1 | 1680×1050 |
| LTM12C278F | TOSHIBA | 12.1 | 800×600 |
| LTN140AT26-L01 | Samsung | 14.0 | 1366×768 |
| LTN154X3-L01 | Samsung | 15.4 | 1280×800 |
