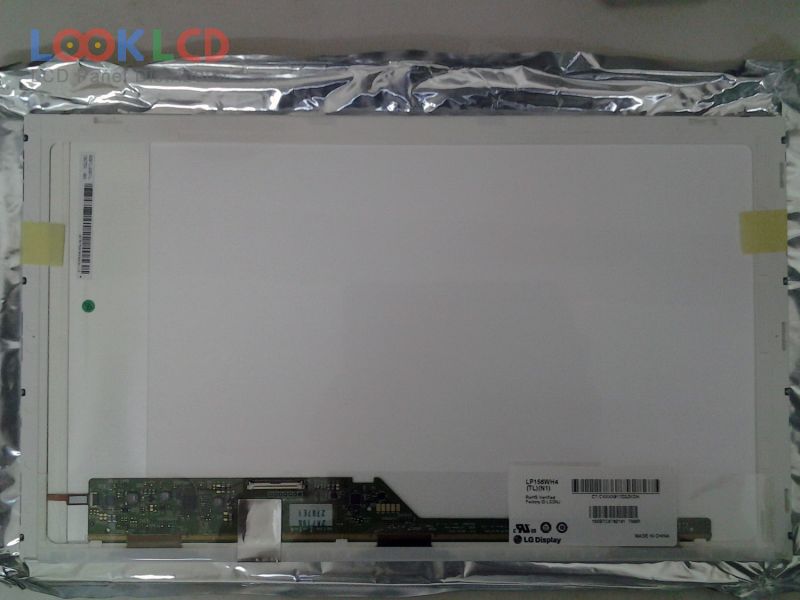

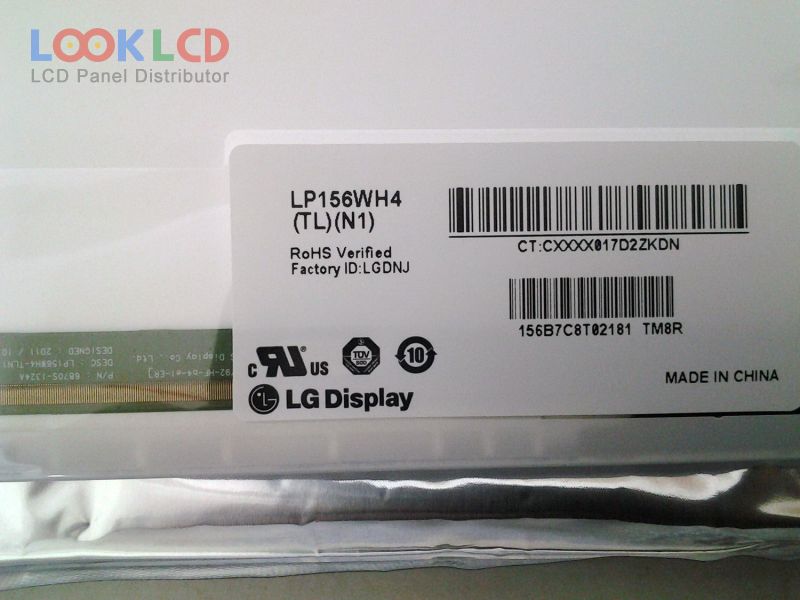

| Artikelnummer | LP156WH4-TLN1 |
| Marke | LG Display |
| Größe | 15.6 |
| Anwendung | NBPC |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 220 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | LG Display |
| Panel-Modell | LP156WH4-TLN1 61 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.6 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 344.232×193.536 mm |
| Umriss | 359.3×209.5×5.5 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Glare (Haze 0%) |
| Helligkeit | 220 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193160% |
| Reaktionszeit | 16 (Typ.)(Tr+Td) |
| Blickwinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 4 stringsWLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
| LP156WF1-TLE1 | LG Display | 15.6 | 1920×1080 |
| LP156WF3-SLB2 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLG1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLQB | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLR1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLA2 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLC1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN1 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPD1 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPG1 | LG Display | 15.6 | 1366×768 |
| B156XW04 V7 | AUO | 15.6 | 1366×768 |
| LP133WH2-TLL2 | LG Display | 13.3 | 1366×768 |
| LP154W02-TL10 | LG Display | 15.4 | 1680×1050 |
| LP154WX4-TLCB | LG Display | 15.4 | 1280×800 |
| LQ133K1LD4B | SHARP | 13.3 | 1280×800 |
| LQ150X1LBE1 | SHARP | 15.0 | 1024×768 |
| LTN121W3-L01 | Samsung | 12.1 | 1280×800 |
| LTN140AT07-L01 | Samsung | 14.0 | 1366×768 |
| LTN154AT01-A01 | Samsung | 15.4 | 1280×800 |
| LTN154U1-L02 | Samsung | 15.4 | 1920×1200 |
