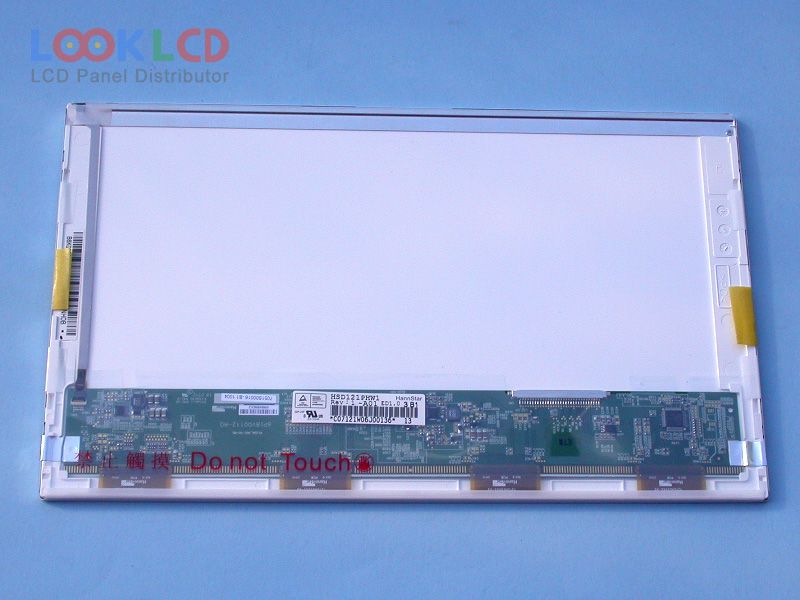

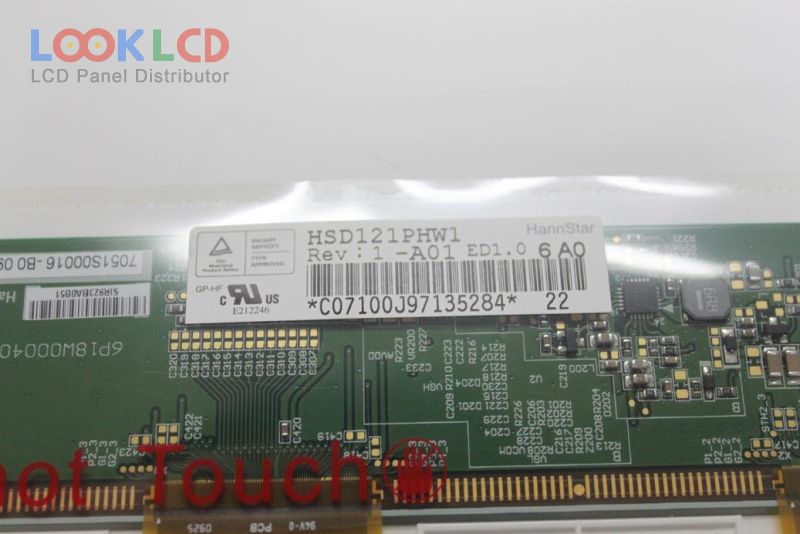

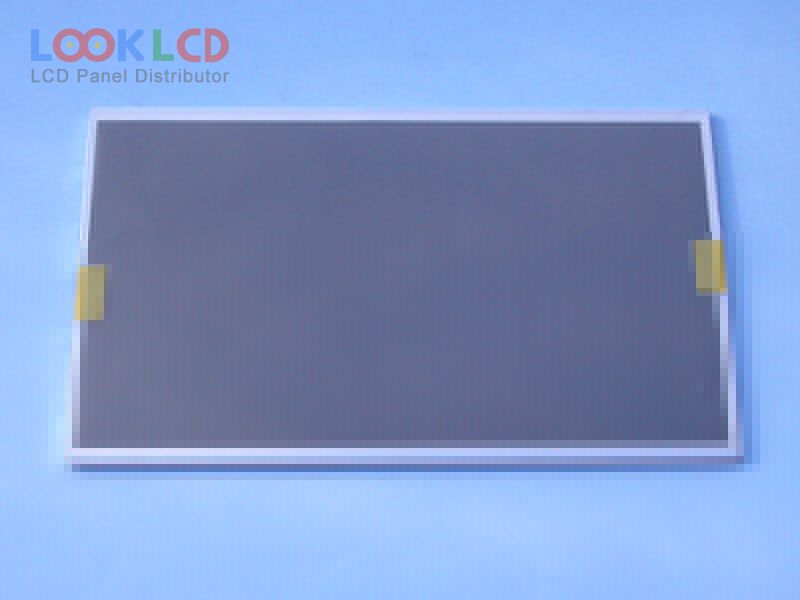

| Artikelnummer | HSD121PHW1-A01 |
| Marke | HannStar |
| Größe | 12.1 |
| Anwendung | NBPC |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 200 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | HannStar |
| Panel-Modell | HSD121PHW1-A01 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 12.1 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 268.01×150.68 mm |
| Umriss | 279×167.2×5.1 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Glare (Haze 0%), Hard coating (3H) |
| Helligkeit | 200 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193150% |
| Reaktionszeit | 3/9 (Typ.)(Tr/Td) |
| Blickwinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
