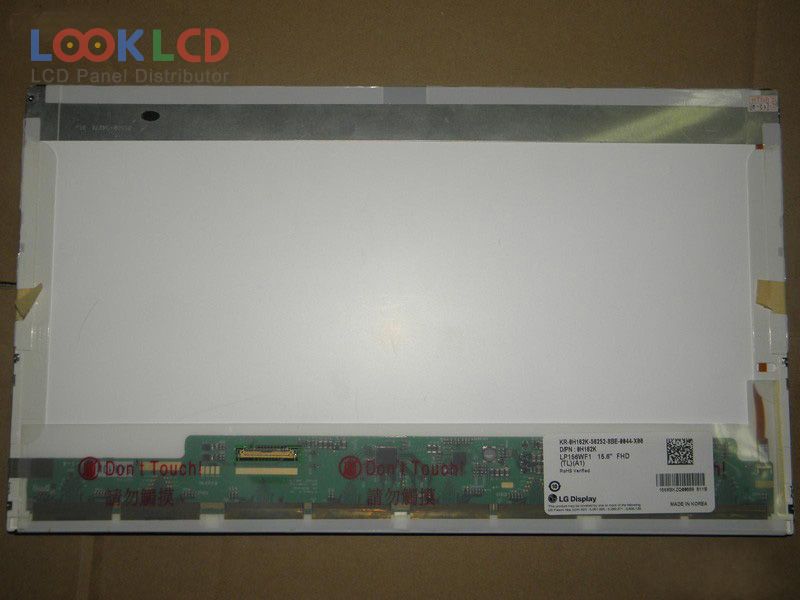

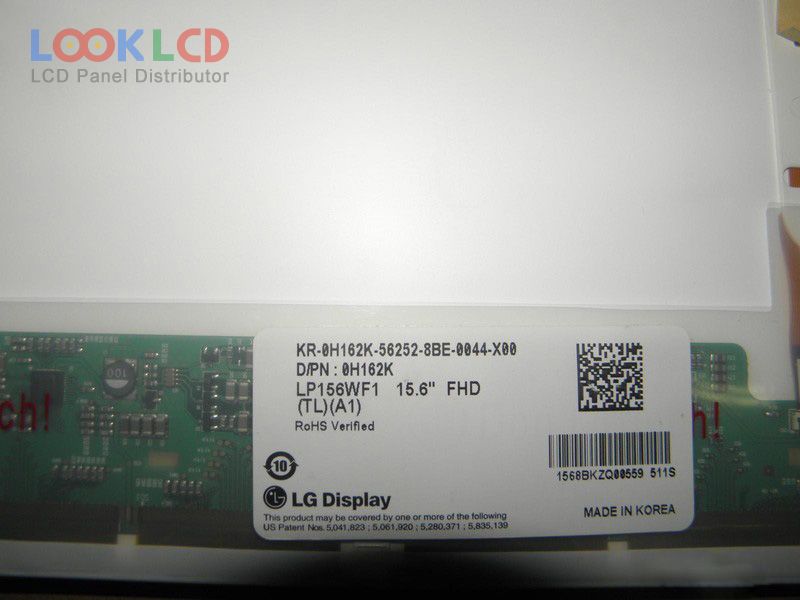

| Artikelnummer | LP156WF1-TLA1 |
| Marke | LG Display |
| Größe | 15.6 |
| Anwendung | NBPC |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | LG Display |
| Panel-Modell | LP156WF1-TLA1 20 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.6 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 344.16×193.59 mm |
| Umriss | 359.3×209.5×5.7 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Glare (Haze 0%), Hard coating (3H) |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Min.) |
| Farben anzeigen | 262K (6-bit), CIE193160% |
| Reaktionszeit | 8 (Typ.)(Tr+Td) |
| Blickwinkel | 60/60/50/50 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (2 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
