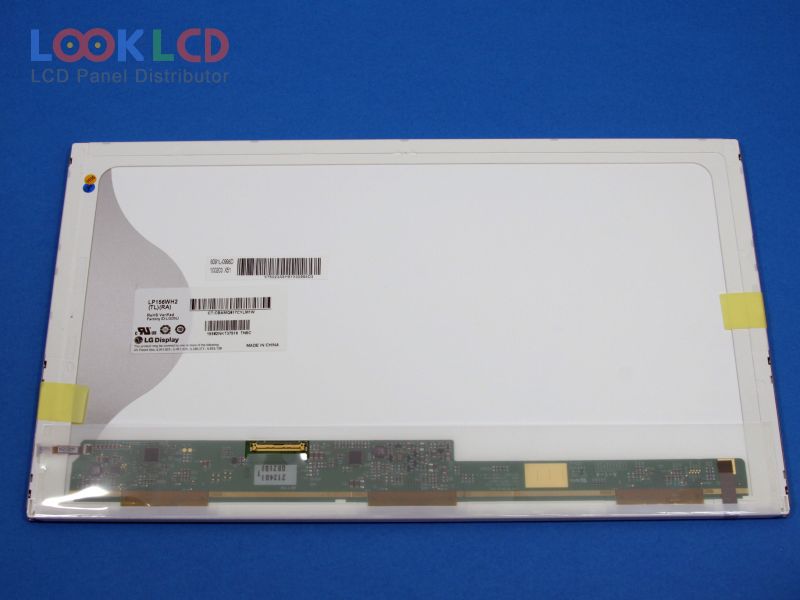

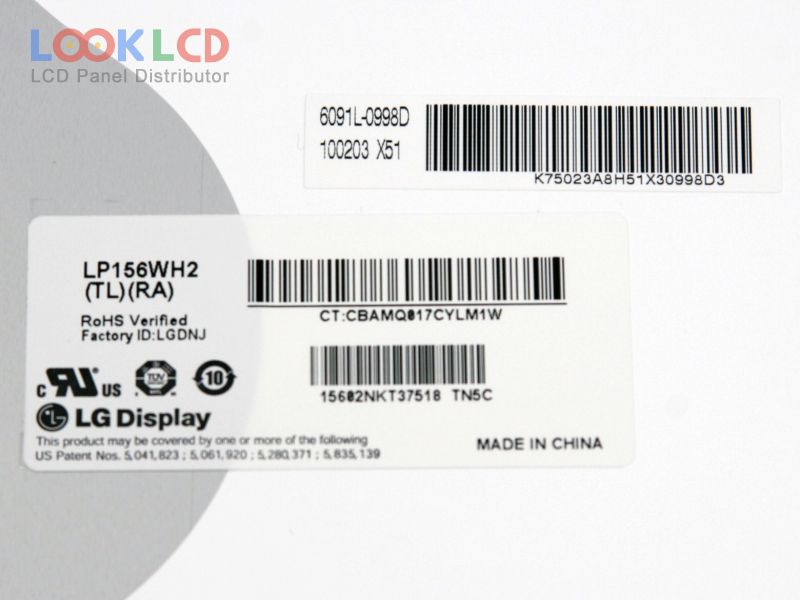

| Artikelnummer | LP156WH2-TLRA |
| Marke | LG Display |
| Größe | 15.6 |
| Anwendung | NBPC |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | |
| CR | |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | LG Display |
| Panel-Modell | LP156WH2-TLRA |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.6 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 344.232×193.536 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Antiglare |
| Helligkeit | |
| Kontrastverhältnis | |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | |
| Blickwinkel | |
| Frequenz | 60Hz |
| Lampentyp | WLED |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 40 pins |
| Anwendung | NBPC |
| LP156WD1-TLA2 | LG Display | 15.6 | 1600×900 |
| LP156WF1-TLB2 | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SLBA | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLAA | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLRA | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLC1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TPP1 | LG Display | 15.6 | 1366×768 |
| LP156WHB-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TLAA | LG Display | 15.6 | 1366×768 |
| BT156GW01 V.3 | Innolux | 15.6 | 1366×768 |
| LP140WH2-TLEA | LG Display | 14.0 | 1366×768 |
| LP154WP3-TLA2 | LG Display | 15.4 | 1440×900 |
| LSN133DL02-A02 | Samsung | 13.3 | 2560×1600 |
| LTD121LA3SG-201 | TOSHIBA | 12.1 | 1024×768 |
| LTN156AT02-D02 | Samsung | 15.6 | 1366×768 |
| LTN170WX-L06 | Samsung | 17.0 | 1440×900 |
| N133BGE-L41 | Innolux | 13.3 | 1366×768 |
| N133I1-L01 | Innolux | 13.3 | 1280×800 |
| N156B6-L04 | Innolux | 15.6 | 1366×768 |
