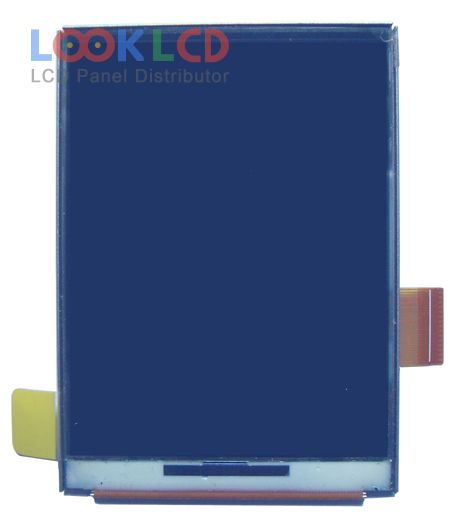

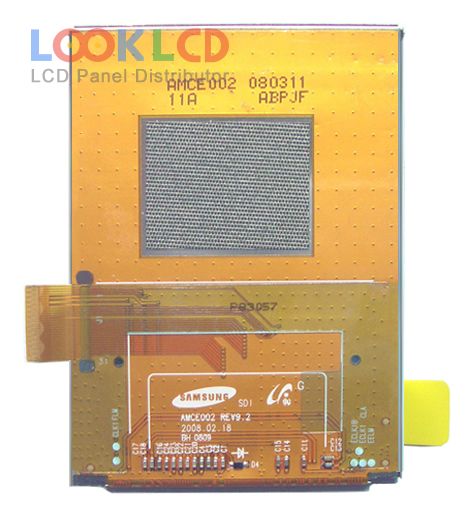

| Artikelnummer | AMCE002 |
| Marke | Samsung |
| Größe | 2.4 |
| Anwendung | MPH |
| Auflösung | 240×320 |
| Komposition | OLED |
| Helligkeit | 200 |
| CR | 30000:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | self |
| Schnittstelle | CPU |
| Panel-Marke | SAMSUNG SDI |
| Panel-Modell | AMCE002 |
| Plattentyp | AM-OLED , OLED |
| Panelgröße | 2.4 inch |
| Auflösung | 240(RGB)×320 , QVGA |
| aktiver Bereich | 36.72×48.96 mm |
| Umriss | 42.32×58.42×1.94 mm |
| Oberfläche | Antiglare, Hard coating (2H) |
| Helligkeit | 200 cd/m² (Typ.) |
| Kontrastverhältnis | 30000 : 1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE1931106% |
| Blickwinkel | 90/90/90/90 (Max.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signalschnittstelle | CPU, 31 pins |
| Eingangsspannung | 3.0/3.8V (Typ.)(VDD/Vbat) |
| Anwendung | MPH |
