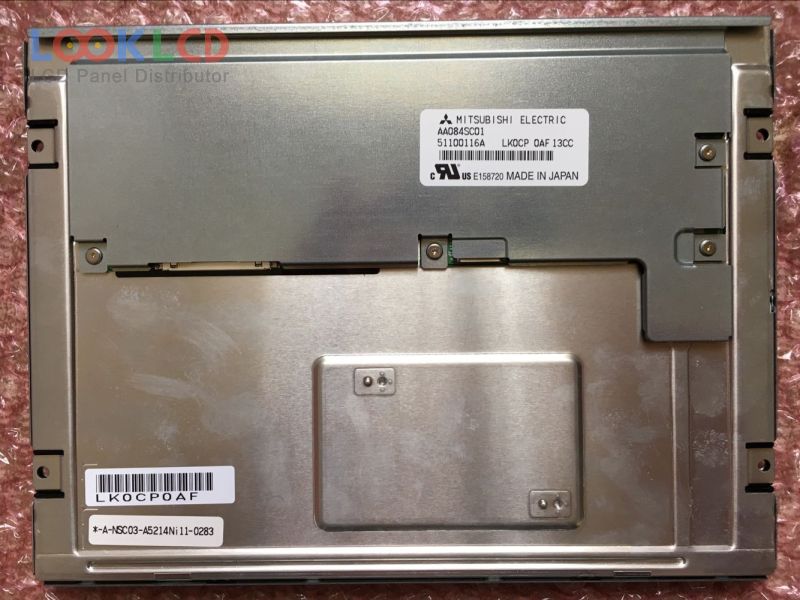

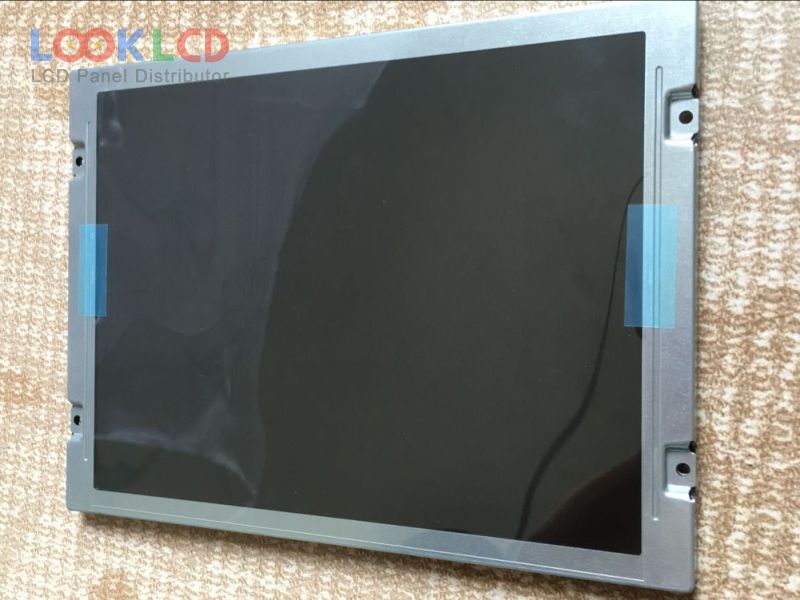

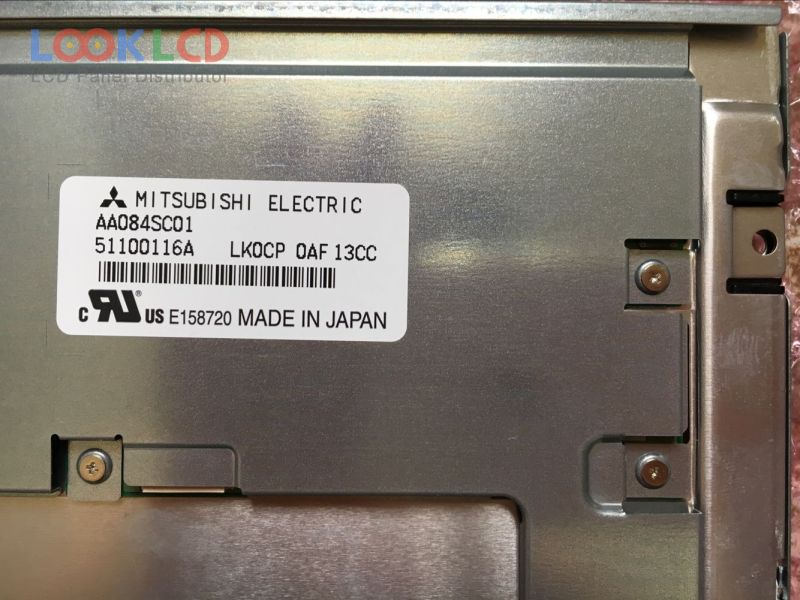

| Artikelnummer | AA084SC01 |
| Marke | Mitsubishi |
| Größe | 8.4 |
| Anwendung | IA |
| Auflösung | 800×600 |
| Komposition | LCM |
| Helligkeit | 600 |
| CR | 1000:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | Mitsubishi |
| Panel-Modell | AA084SC01 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 8.4 inch |
| Auflösung | 800(RGB)×600 , SVGA |
| Anzeigemodus | IPS, Normally Black, Transmissive |
| aktiver Bereich | 170.4×127.8 mm |
| Umriss | 199.5×149 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 600 cd/m² (Typ.) |
| Kontrastverhältnis | 1000:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193172% |
| Reaktionszeit | 12/12 (Typ.)(Tr/Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
