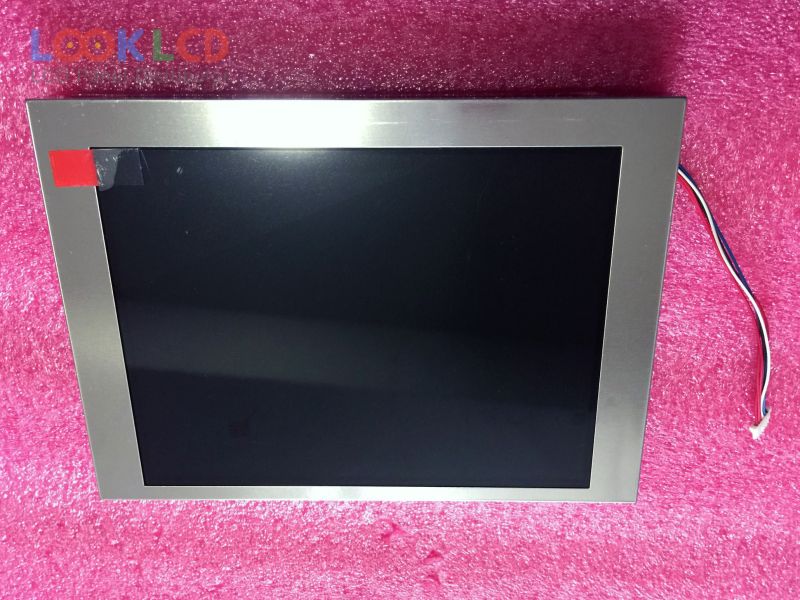

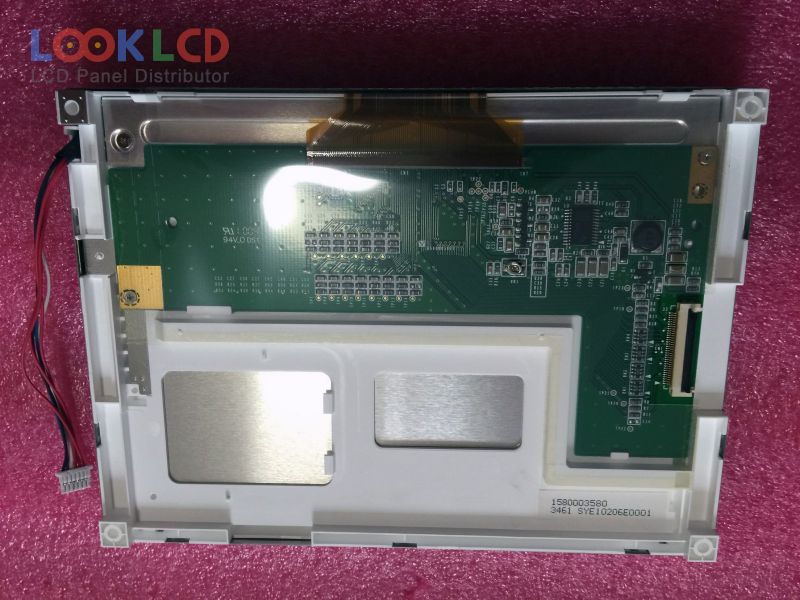

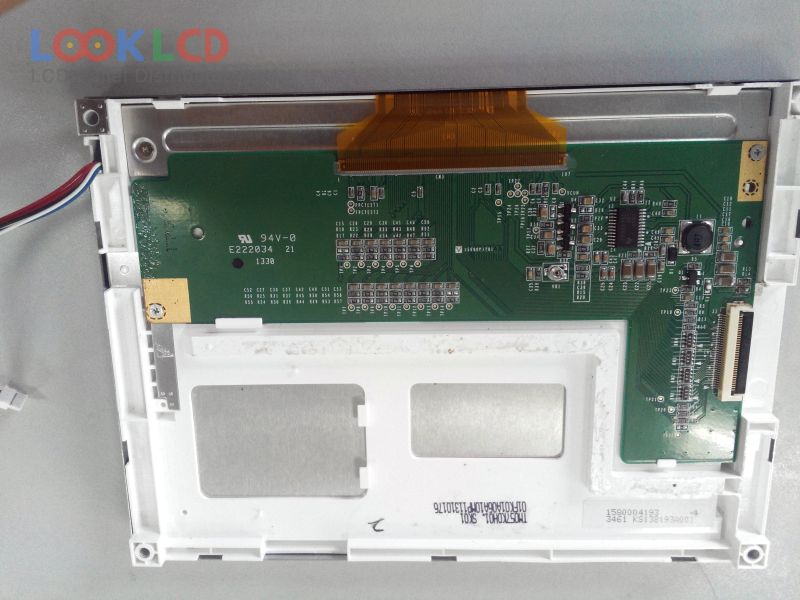

| Artikelnummer | TM057KDH01 |
| Marke | Tianma |
| Größe | 5.7 |
| Anwendung | IA |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | TIANMA |
| Panel-Modell | TM057KDH01 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 5.7 inch |
| Auflösung | 320(RGB)×240 , QVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 115.2×86.4 mm |
| Umriss | 144×104.6×12.8 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193150% |
| Reaktionszeit | 20/30 (Typ./Max.)(Tr+Td) |
| Blickwinkel | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 5S3PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit), 33 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
