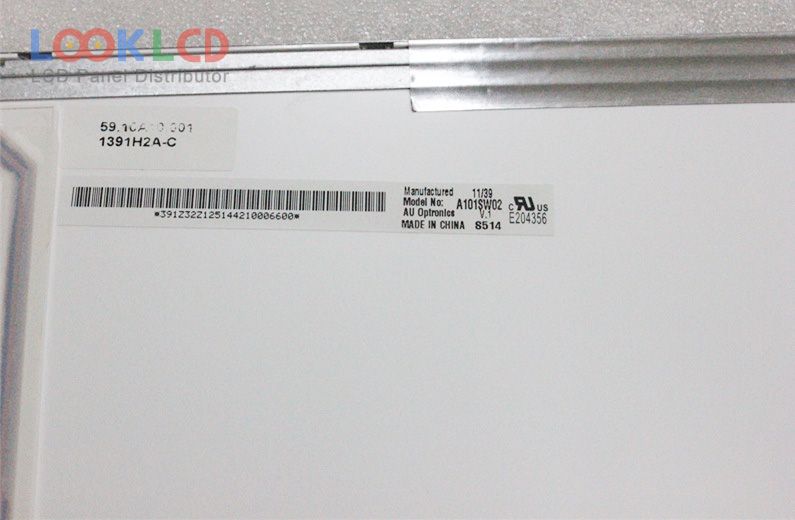

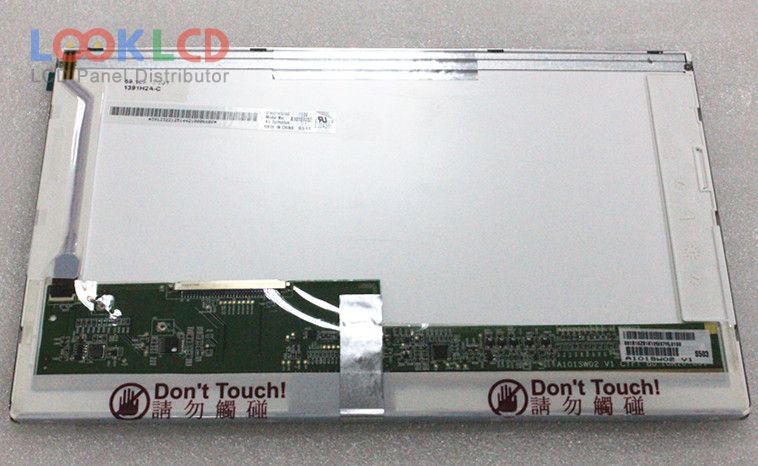

| Artikelnummer | A101SW02 V1 |
| Marke | AUO |
| Größe | 10.1 |
| Anwendung | DPF |
| Auflösung | 1024×600 |
| Komposition | LCM |
| Helligkeit | 275 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | AUO |
| Panel-Modell | A101SW02 V1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.1 inch |
| Auflösung | 1024(RGB)×600 , WSVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 222.72×125.28 mm |
| Umriss | 235×143×5.4 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 275 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193145% |
| Reaktionszeit | 7/9 (Typ.)(Tr/Td) |
| Blickwinkel | 65/65/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | DPF |
| A101SW02 V1 | AUO | 10.1 | 1024×600 |
| A101VW01 V0 | AUO | 10.1 | 800×480 |
| B101EW01 V0 | AUO | 10.1 | 1280×720 |
| B101UAN01.E | AUO | 10.1 | 1920×1200 |
| B101UAN02.1 | AUO | 10.1 | 1920×1200 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| HSD101PFW3-B00 | HannStar | 10.1 | 1024×600 |
| LP101WH1-TLA1 | LG Display | 10.1 | 1366×768 |
| LQ101K5DZ01 | SHARP | 10.1 | 1280×422 |
| LT101MB02000 | JDI | 10.1 | 1920×1200 |
| A080SN03 V0 | AUO | 8.0 | 800×600 |
| A080SN03 V2 | AUO | 8.0 | 800×600 |
| A080SN03 V3 | AUO | 8.0 | 800×600 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| EJ080NA-04B | Innolux | 8.0 | 1024×768 |
| EJ080NA-05A | Innolux | 8.0 | 800×600 |
| EJ080NA-05B | Innolux | 8.0 | 800×600 |
| HSD070IDW1-A00 | HannStar | 7.0 | 800×480 |
| HSD080IDW1-A00 | HannStar | 8.0 | 800×480 |
| TR-LM7WR3PS | Panasonic | 7.0 | 480×234 |
