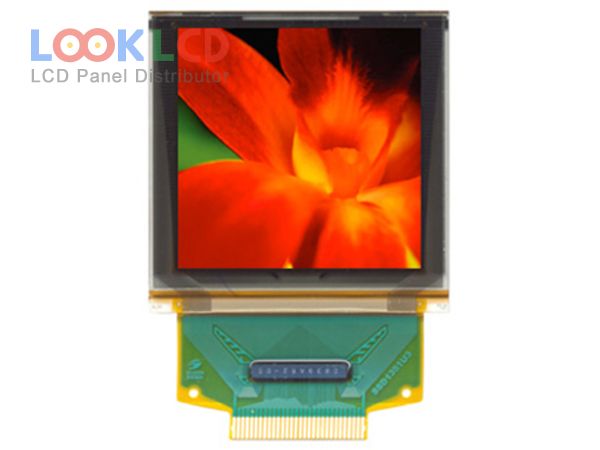

| Artikelnummer | UG-2828GDEDF11 |
| Marke | WiseChip |
| Größe | 1.5 |
| Anwendung | MPH |
| Auflösung | 128×128 |
| Komposition | OLED |
| Helligkeit | 90 |
| CR | 10000:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | self |
| Schnittstelle | CPU/SPI |
| Panel-Marke | Univision |
| Panel-Modell | UG-2828GDEDF11 |
| Plattentyp | PM-OLED , OLED |
| Panelgröße | 1.5 inch |
| Auflösung | 128(RGB)×128 |
| aktiver Bereich | 26.855×26.864 mm |
| Umriss | 33.8×34×1.7 mm |
| Oberfläche | Antiglare |
| Helligkeit | 90 cd/m² (Typ.) |
| Kontrastverhältnis | 10000 : 1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193163% |
| Blickwinkel | 80/80/80/80 (Min.)(L/R/U/D) |
| Treiber-IC | COF Built-in SSD1351 |
| Signalschnittstelle | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| Eingangsspannung | 2.8/2.5/1.8/13V (Typ.)(VCI/VDD/VDDIO/VCC) |
| Anwendung | MPH |
