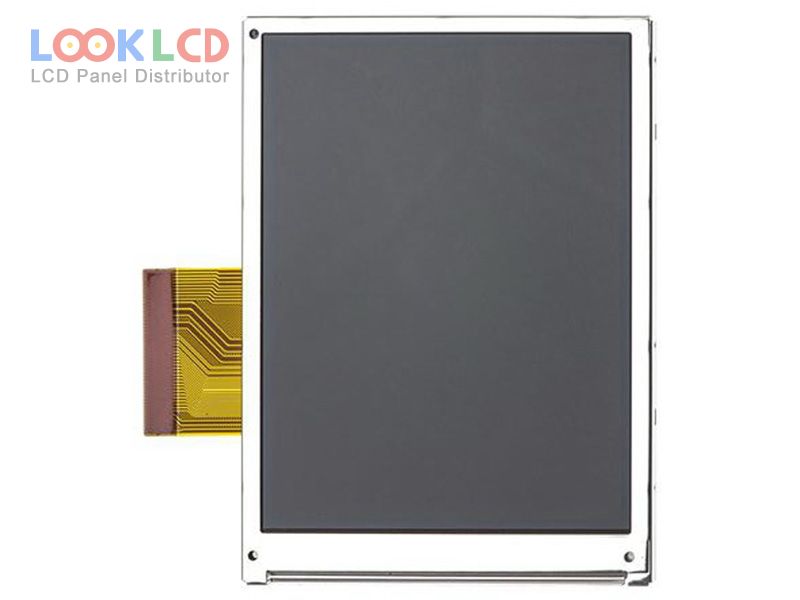

| Artikelnummer | TX09D40VM3CBA |
| Marke | KOE |
| Größe | 3.5 |
| Anwendung | HHP |
| Auflösung | 240×320 |
| Komposition | LCM |
| Helligkeit | 430 |
| CR | 300:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | HITACHI |
| Panel-Modell | TX09D40VM3CBA |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 240(RGB)×320 , QVGA |
| Anzeigemodus | TN, Normally White, TMR |
| aktiver Bereich | 53.64×71.52 mm |
| Umriss | 64×86×4.5 mm |
| Oberfläche | |
| Helligkeit | 430 cd/m² (Typ.) |
| Kontrastverhältnis | 300 : 1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 30 (Typ.)(Tr+Td) |
| Blickwinkel | 80/50/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 3S2PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit), 50 pins |
| Eingangsspannung | 3.0/8.45/16.5/-8.05V (Typ.)(VCC/VDH/VGH/VGL) |
| Anwendung | HHP |
| 35HVE0H | SII | 3.5 | 320×480 |
| AMS347FF02 | Samsung | 3.5 | 360×640 |
| DLC0350CZG-T-2 | Other | 3.5 | 320×240 |
| GCX123AKQ-E | JDI | 3.5 | 240×320 |
| NL2432HC22-41B | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| PD035QX2 | E Ink | 3.5 | 320×240 |
| TX09D23VM1CAA | KOE | 3.5 | 240×320 |
| TX09D40VM3CBA | KOE | 3.5 | 240×320 |
| UMSH-8065MD-11T | Other | 3.5 | 320×240 |
| 20QVF1H | SII | 2.0 | 240×320 |
| 28QVF1J | SII | 2.8 | 240×320 |
| AM-320240-015A | Other | 1.5 | 320×240 |
| LQ038Q7DB03 | SHARP | 3.8 | 240×320 |
| LQ039Q2DS51 | SHARP | 3.9 | 320×240 |
| LQ043T1DG03B | SHARP | 4.3 | 480×272 |
| LS027B7DH01 | SHARP | 2.7 | 400×240 |
| TM035HDHT1 | Tianma | 3.5 | 240×320 |
| TM035WBHG01 | Tianma | 3.5 | 480×640 |
| TX09D200VM0BAA | KOE | 3.5 | 240×320 |
