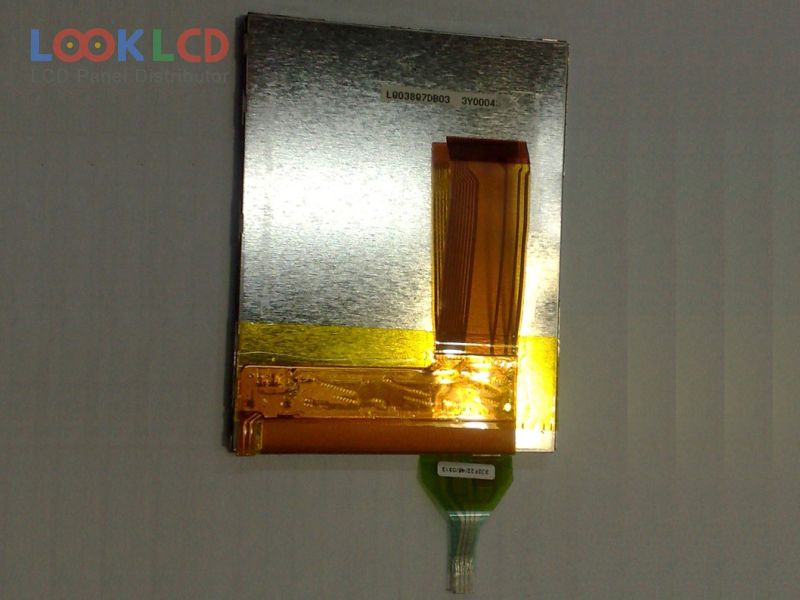

| Artikelnummer | LQ038Q7DB03 |
| Marke | SHARP |
| Größe | 3.8 |
| Anwendung | HHP |
| Auflösung | 240×320 |
| Komposition | LCM |
| Helligkeit | 90 |
| CR | 75:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | SHARP |
| Panel-Modell | LQ038Q7DB03 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.8 inch |
| Auflösung | 240(RGB)×320 , QVGA |
| Anzeigemodus | TN, Normally White, Transflective |
| aktiver Bereich | 57.6×76.8 mm |
| Umriss | 69×88.6 mm |
| Oberfläche | Hard coating (3H) |
| Helligkeit | 90 cd/m² (Typ.) |
| Kontrastverhältnis | 75:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 30/50 (Typ.)(Tr/Td) |
| Blickwinkel | 40/40/40/40 (Typ.)(CR≥2)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit), 61 pins |
| Eingangsspannung | 5.0/3.3/15.0/-15.0V (Typ.)(VSHA/VSHD/VDD/VSS) |
| Anwendung | HHP |
