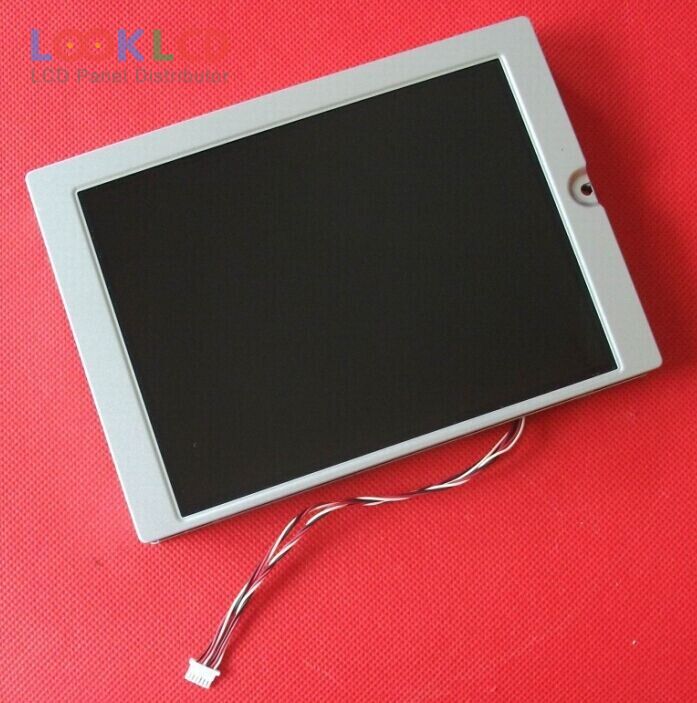

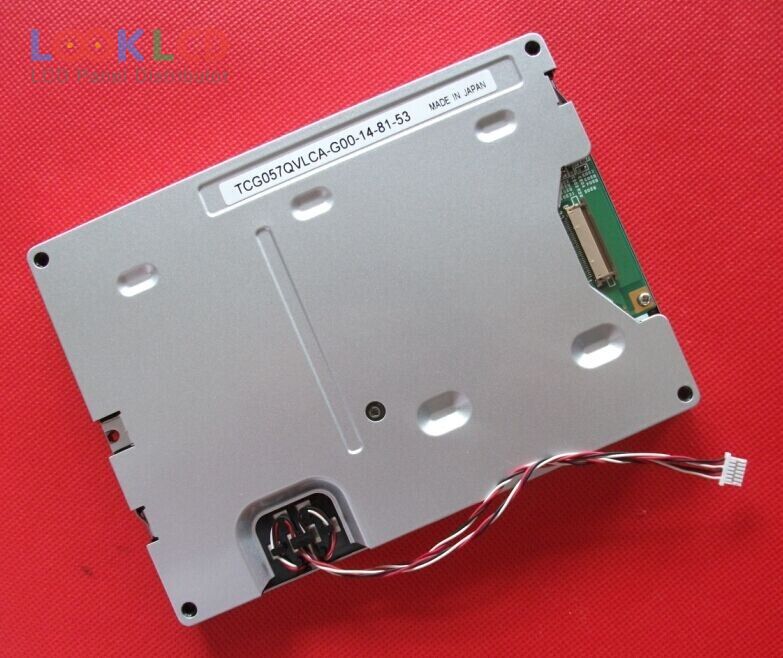

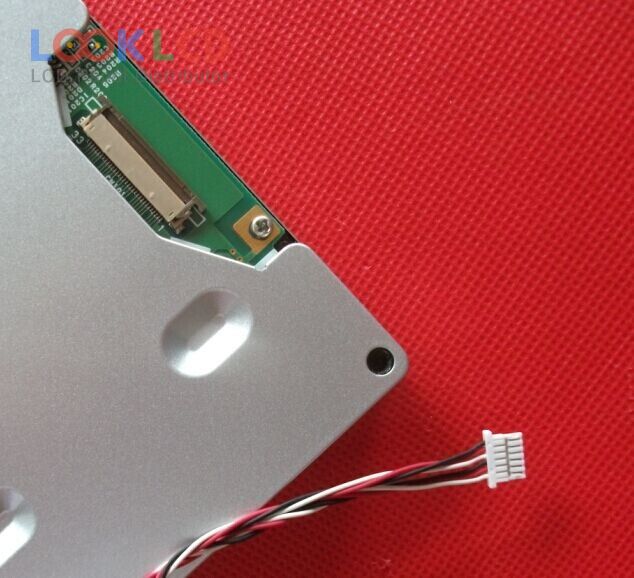

| Artikelnummer | TCG057QVLCA-G00 |
| Marke | Kyocera |
| Größe | 5.7 |
| Anwendung | IA |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | Kyocera |
| Panel-Modell | TCG057QVLCA-G00 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 5.7 inch |
| Auflösung | 320(RGB)×240 , QVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 115.2×86.4 mm |
| Umriss | 144×104.8×13.5 mm |
| Oberfläche | Glare (Haze 0%) |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 10/25 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| Lampentyp | 3 stringsWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit), 33 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
| AM-640480G2TNQW-31H | AMPIRE | 5.7 | 640×480 |
| KG057QV1DB-G00 | Kyocera | 5.7 | 320×240 |
| KS3224ASTT-FW-X9 | Kyocera | 5.7 | 320×240 |
| LQ057V3DG01 | SHARP | 5.7 | 640×480 |
| LQ6NC02 | SHARP | 5.7 | 240×240 |
| PD057VU7 | E Ink | 5.7 | 320×240 |
| SH320240C | Other | 5.7 | 320×240 |
| TCG057QVLAC-G00 | Kyocera | 5.7 | 320×240 |
| TCG057QVLCA-G00 | Kyocera | 5.7 | 320×240 |
| TCG057QVLHA-G00 | Kyocera | 5.7 | 320×240 |
| EL320.240.36 ET | Lumineq | 5.7 | 320×240 |
| G150XTT01.0 | AUO | 15.0 | 1024×768 |
| KCB104VG2CA-G43 | Kyocera | 10.4 | 640×480 |
| LM32019T | SHARP | 5.7 | 320×240 |
| LMG5278XUFC-00T | KOE | 9.4 | 640×480 |
| LQ64D341 | SHARP | 6.4 | 640×480 |
| OEL9M0078-W-E | Other | 1.45 | 132×16 |
| PD050SX2 | E Ink | 5.0 | 800×600 |
| TM084SDHG02 | Tianma | 8.4 | 800×600 |
| UG-2864ASYIG01 | WiseChip | 2.7 | 128×64 |
