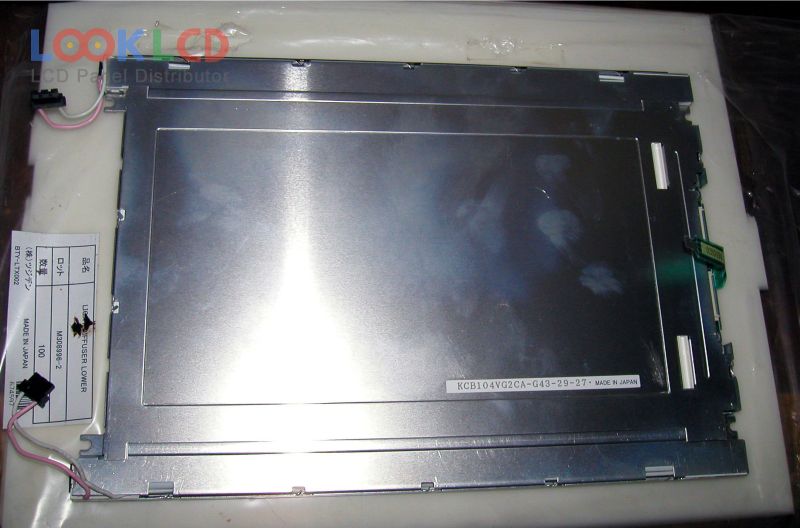

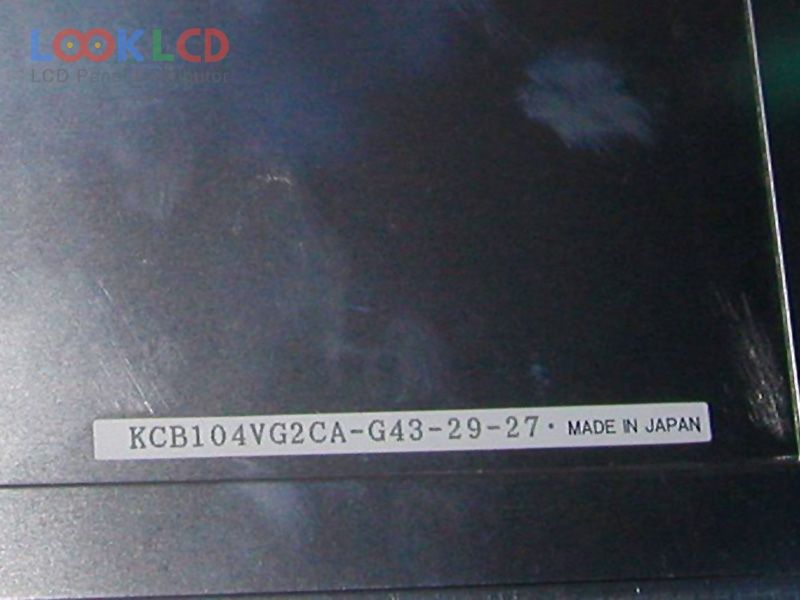

| Artikelnummer | KCB104VG2CA-G43 |
| Marke | Kyocera |
| Größe | 10.4 |
| Anwendung | IA |
| Auflösung | 640×480 |
| Komposition | LCM |
| Helligkeit | 160 |
| CR | 30:1 |
| Farben | Color |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | Parallel Data |
| Panel-Marke | Kyocera |
| Panel-Modell | KCB104VG2CA-G43 |
| Plattentyp | CSTN-LCD , LCM |
| Panelgröße | 10.4 inch |
| Auflösung | 640(RGB)×480 , VGA |
| Anzeigemodus | STN, Normally Black, Transmissive |
| aktiver Bereich | 211.2×158.4 mm |
| Umriss | 264×183×9 mm |
| Oberfläche | Glare (Haze 0%) |
| Helligkeit | 160 cd/m² (Typ.) |
| Kontrastverhältnis | 30:1 (Typ.) |
| Farben anzeigen | Color |
| Reaktionszeit | 160/80 (Typ.)(Tr/Td) |
| Blickwinkel | 45/45/35/20 (Typ.)(CR≥2)(L/R/U/D) |
| Frequenz | 75Hz |
| Lampentyp | 2 pcsCCFLOptional |
| Signalschnittstelle | Parallel Data (8-bit), 29 pins |
| Eingangsspannung | 5.0V (Typ.) |
| Anwendung | IA |
