| Artikelnummer | TM084SDHG02 |
| Marke | Tianma |
| Größe | 8.4 |
| Anwendung | IA |
| Auflösung | 800×600 |
| Komposition | LCM |
| Helligkeit | 330 |
| CR | 500:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | TIANMA |

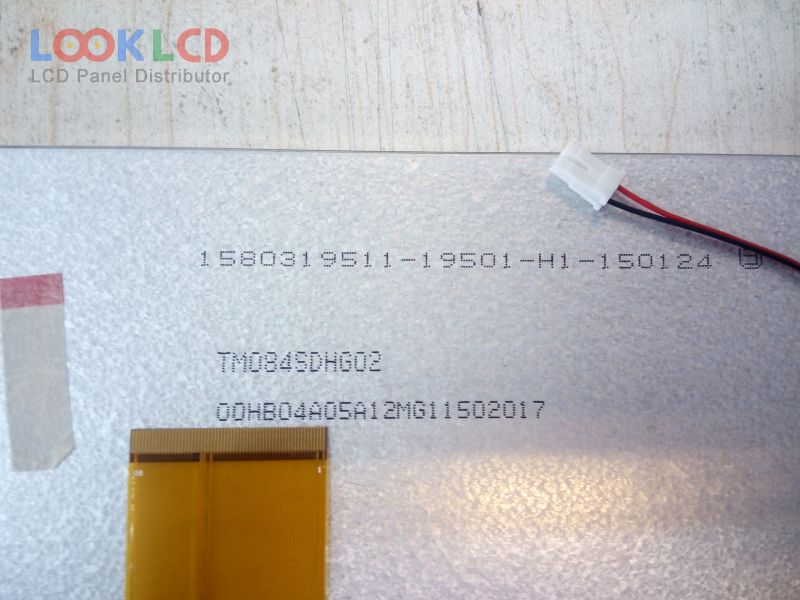

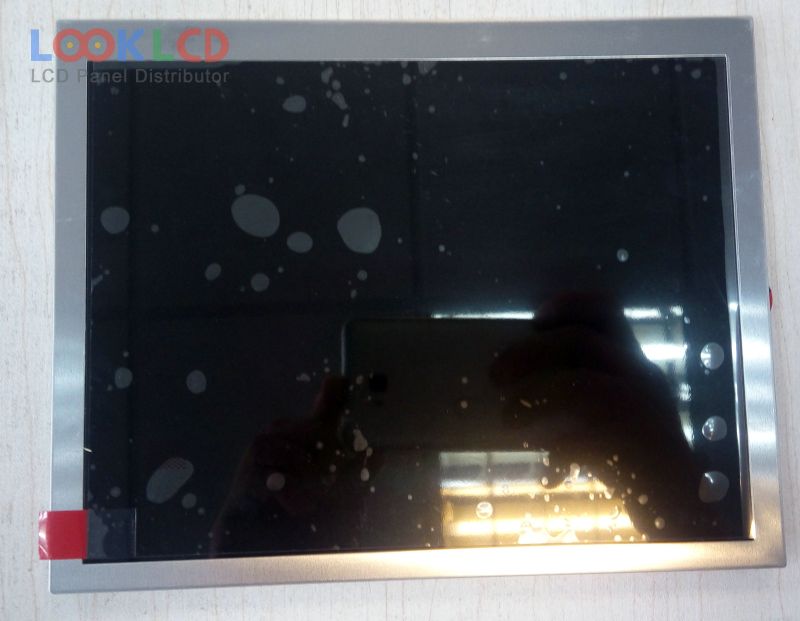

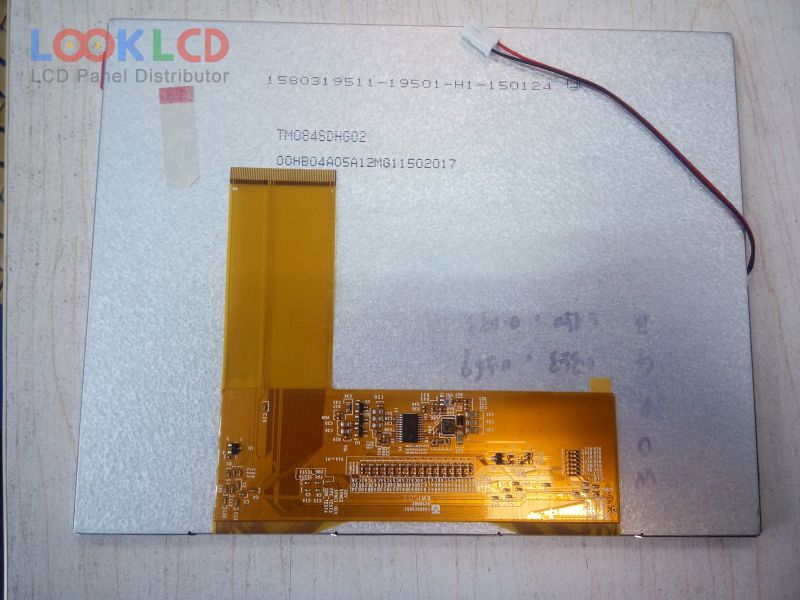

| Panel-Modell | TM084SDHG02 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 8.4 inch |
| Auflösung | 800(RGB)×600 , SVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 170.4×127.8 mm |
| Umriss | 189.75×149.4 mm |
| Oberfläche | Antiglare |
| Helligkeit | 330 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Dithering), CIE193150% |
| Reaktionszeit | 20 (Typ.)(Tr+Td) |
| Blickwinkel | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 3S7PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6/8-bit), 60 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
