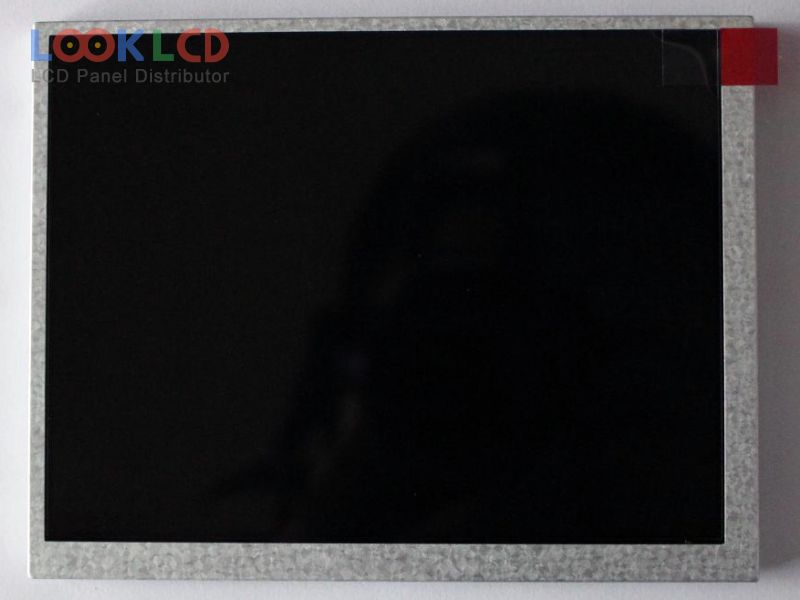

| Artikelnummer | AM-640480G2TNQW-31H |
| Marke | AMPIRE |
| Größe | 5.7 |
| Anwendung | IA |
| Auflösung | 640×480 |
| Komposition | LCM |
| Helligkeit | 500 |
| CR | 250:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | AMPIRE |
| Panel-Modell | AM-640480G2TNQW-31H |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 5.7 inch |
| Auflösung | 640(RGB)×480 , VGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 115.2×86.4 mm |
| Umriss | 127×98.43×6.9 mm |
| Oberfläche | Antiglare |
| Helligkeit | 500 cd/m² (Typ.) |
| Kontrastverhältnis | 250:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 50 (Typ.)(Tr+Td) |
| Blickwinkel | 70/70/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3/5.0V (Typ.)(VCC/VDD) |
| Anwendung | IA |
