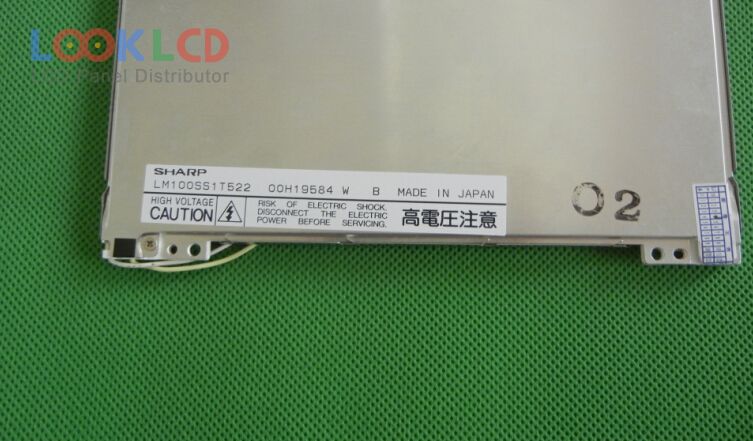

| Artikelnummer | LM100SS1T522 |
| Marke | SHARP |
| Größe | 10.0 |
| Anwendung | IA |
| Auflösung | 800×600 |
| Komposition | LCM |
| Helligkeit | 100 |
| CR | 50:1 |
| Farben | Color |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | Parallel Data |
| Panel-Marke | SHARP |
| Panel-Modell | LM100SS1T522 |
| Plattentyp | CSTN-LCD , LCM |
| Panelgröße | 10.0 inch |
| Auflösung | 800(RGB)×600 , SVGA |
| Anzeigemodus | STN, Normally Black, Transmissive |
| aktiver Bereich | 203.98×152.98 mm |
| Umriss | 236.8×172.5×6.8 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 100 cd/m² (Typ.) |
| Kontrastverhältnis | 50:1 (Typ.) |
| Farben anzeigen | Color |
| Reaktionszeit | 220/80 (Typ.)(Tr/Td) |
| Blickwinkel | 30/30/15/25 (Typ.)(CR≥5)(L/R/U/D) |
| Frequenz | 120Hz |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | Parallel Data (8-bit), 31 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
