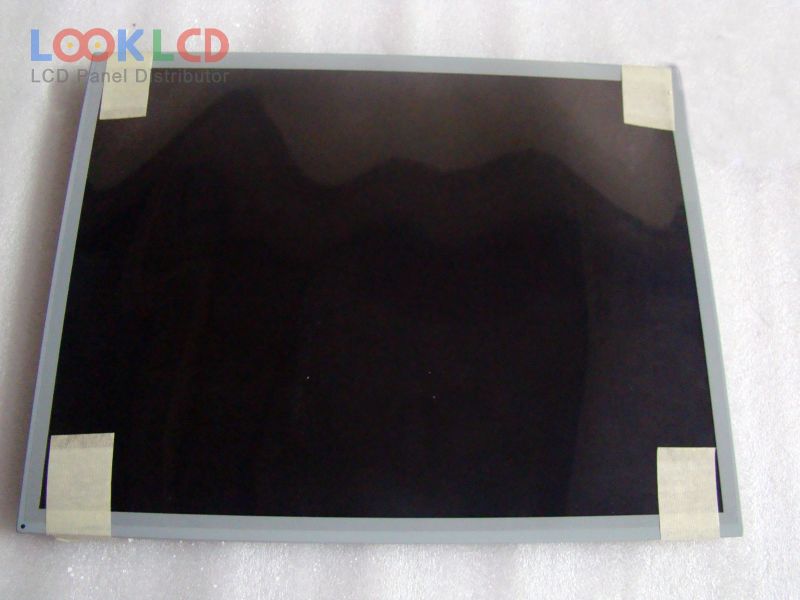

| Artikelnummer | T150XG01 V2 |
| Marke | AUO |
| Größe | 15.0 |
| Anwendung | LCTV |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 500:1 |
| Farben | 16.2M |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | AUO |
| Panel-Modell | T150XG01 V2 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.0 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 304.128×228.096 mm |
| Umriss | 326.5×253.5×14.6 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 16.2M (6-bit + FRC), CIE193165% |
| Reaktionszeit | 9/3 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/55 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 4 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | LCTV |
| G150XTN03.0 | AUO | 15.0 | 1024×768 |
| LQ150X1LG96 | SHARP | 15.0 | 1024×768 |
| LTM150XH-L06 | Samsung | 15.0 | 1024×768 |
| N150P5-L02 | Innolux | 15.0 | 1400×1050 |
| NL10276BC30-18 | NLT | 15.0 | 1024×768 |
| NL10276BC30-18C | NLT | 15.0 | 1024×768 |
| T150XG01 V0 | AUO | 15.0 | 1024×768 |
| T150XG01 V2 | AUO | 15.0 | 1024×768 |
| TM150TCS02 | Tianma | 15.0 | 1024×768 |
| TM150XG-A02-01 | SANYO | 15.0 | 1024×768 |
| HV550QUB-B10 | BOE | 55 | 3840×2160 |
| LC171W03-A4K5 | LG Display | 17.1 | 1280×768 |
| LC320DXY-SGA2 | LG Display | 31.5 | 1366×768 |
| LC420DUE-FGA3 | LG Display | 42 | 1920×1080 |
| LTA460HF03-T02 | Samsung | 46 | 1920×1080 |
| PM50H4000 | COC | 50 | 1365×768 |
| T315HW05 V5 | AUO | 31.5 | 1920×1080 |
| T420HVN04.5 CELL | AUO | 42 | 1920×1080 |
| V580DJ2-QS5 | Innolux | 58 | 3840×2160 |
| V580DK2-KS1 Rev.C8 | Innolux | 58 | 3840×2160 |
