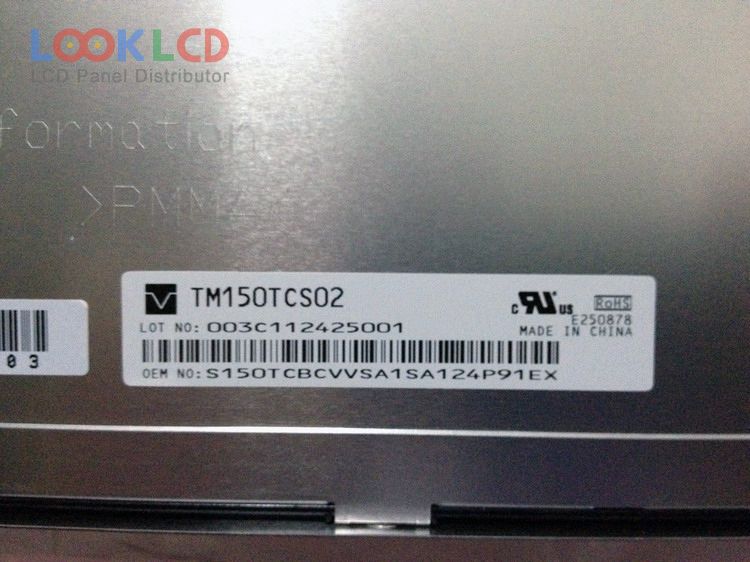

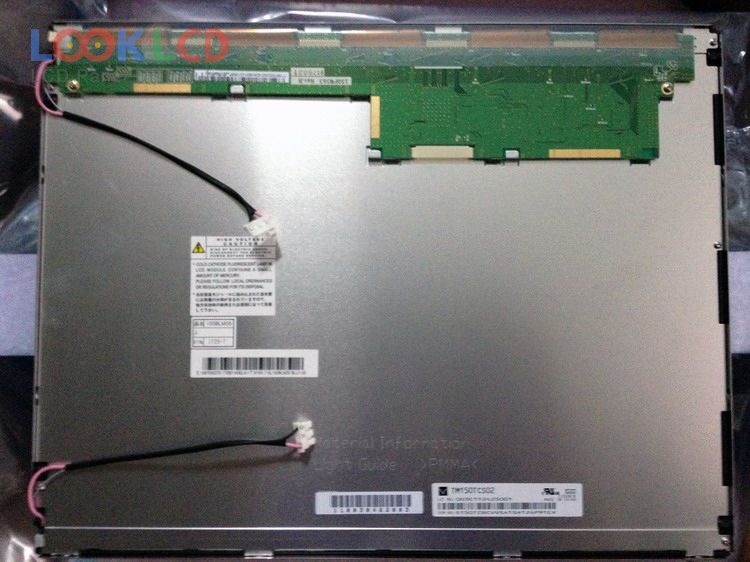

| Artikelnummer | TM150TCS02 |
| Marke | Tianma |
| Größe | 15.0 |
| Anwendung | IA |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 250 |
| CR | 500:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | AVIC |
| Panel-Modell | TM150TCS02 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.0 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 304.128×228.096 mm |
| Umriss | 326.5×253.5×12 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 250 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 16.7M (6-bit + Hi-FRC), CIE193150% |
| Reaktionszeit | 4/14 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
| TM150SP-02L01 | SANYO | 15.0 | 1400×1050 |
| TM150TCS02 | Tianma | 15.0 | 1024×768 |
| TM150TDS50 | Tianma | 15.0 | 1024×768 |
| TM150TDSG52 | Tianma | 15.0 | 1024×768 |
| TM150TDSG53 | Tianma | 15.0 | 1024×768 |
| TM150TDSG70 | Tianma | 15.0 | 1024×768 |
| TM150XG-02L11 | SANYO | 15.0 | 1024×768 |
| TM150XG-22L01A | SANYO | 15.0 | 1024×768 |
| TM150XG-26L06A | SANYO | 15.0 | 1024×768 |
| TM150XG-A02-01 | SANYO | 15.0 | 1024×768 |
| AM-800480LATMQW-TN0H | AMPIRE | 5.0 | 800×480 |
| DLC1040ABG-2 | Other | 10.4 | 800×600 |
| EL320.240-FA3 | Lumineq | 4.9 | 320×240 |
| LQ104S1LG81 | SHARP | 10.4 | 800×600 |
| LQ150X1LW72 | SHARP | 15.0 | 1024×768 |
| LTA121C32HF | TOSHIBA | 12.1 | 800×600 |
| NL10276BC12-02 | NLT | 6.3 | 1024×768 |
| NL6448BC18-06F | NLT | 5.7 | 640×480 |
| T-51639D084JU-FW-A-AB | Kyocera | 8.4 | 1024×768 |
| T-55561D090J-LW-A-AAN | Kyocera | 9.0 | 800×480 |
