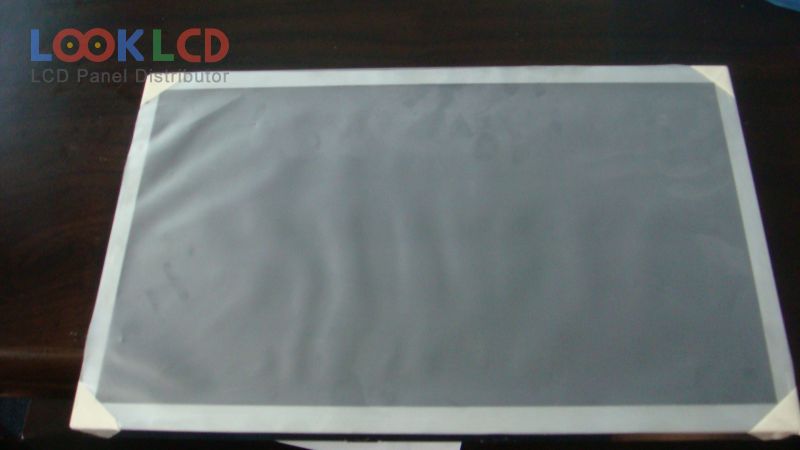

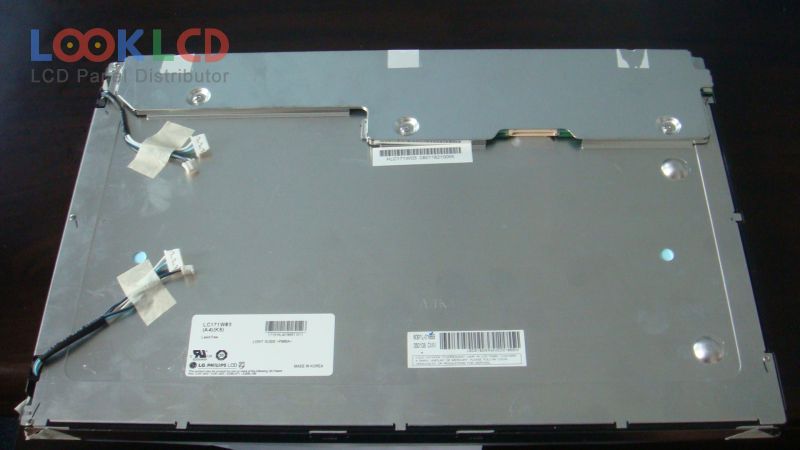

| Artikelnummer | LC171W03-A4K5 |
| Marke | LG Display |
| Größe | 17.1 |
| Anwendung | LCTV |
| Auflösung | 1280×768 |
| Komposition | LCM |
| Helligkeit | 450 |
| CR | 400:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | LG.Philips LCD |

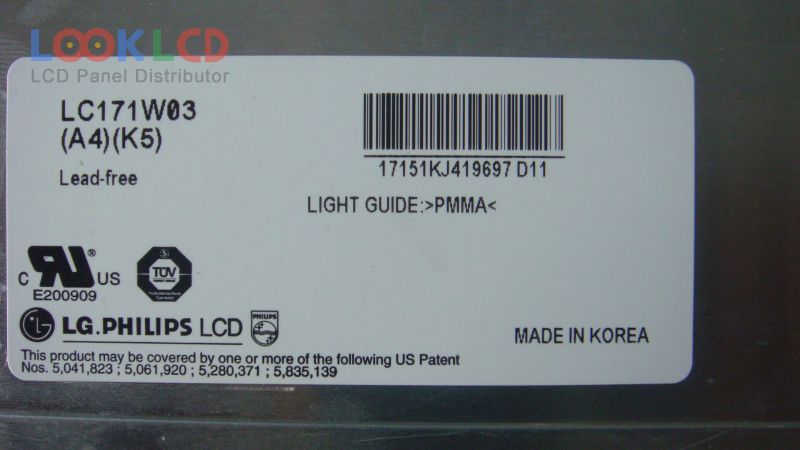

| Panel-Modell | LC171W03-A4K5 2 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 17.1 inch |
| Auflösung | 1280(RGB)×768 , WXGA |
| Anzeigemodus | S-IPS, Normally Black, Transmissive |
| aktiver Bereich | 372.48×223.488 mm |
| Umriss | 400×258×22.7 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 450 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit) |
| Reaktionszeit | 12/13 (Typ.)(Tr/Td) |
| Blickwinkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 20 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
| LC171W03-A4K5 | LG Display | 17.1 | 1280×768 |
| LC171W03-B4K1 | LG Display | 17.1 | 1280×768 |
| LC171W03-C4 | LG Display | 17.1 | 1280×768 |
| LM171WX3-TLC2 | LG Display | 17.1 | 1440×900 |
| LP171WE2-TLA2 | LG Display | 17.1 | 1680×1050 |
| LP171WP4-TLQ2 | LG Display | 17.1 | 1440×900 |
| LP171WP9-TLB2 | LG Display | 17.1 | 1440×900 |
| LP171WPA-TLA1 | LG Display | 17.1 | 1440×900 |
| LP171WU1-TLA3 | LG Display | 17.1 | 1920×1200 |
| LP171WU8-SLB1 | LG Display | 17.1 | 1920×1200 |
| LC260EXN-SDA1 | LG Display | 26.0 | 1366×768 |
| LC420EUE-SEM2 | LG Display | 42 | 1920×1080 |
| LC420EUF-PGF1 | LG Display | 42 | 1920×1080 |
| LK315D3HA9K | SHARP | 31.5 | 1920×1080 |
| LTA320WT-L08 | Samsung | 31.5 | 1366×768 |
| LTA520HE05 | Samsung | 52 | 1920×1080 |
| T320XVN01.0 | AUO | 31.5 | 1366×768 |
| V390HK1-LS6 | Innolux | 39 | 1920×1080 |
| V460H1-L12 | Innolux | 46 | 1920×1080 |
| V580HJ1-PD6 | Innolux | 58 | 1920×1080 |
