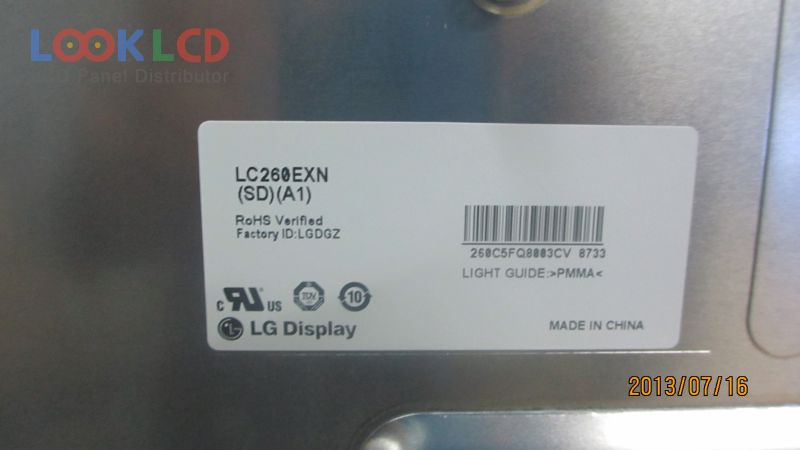

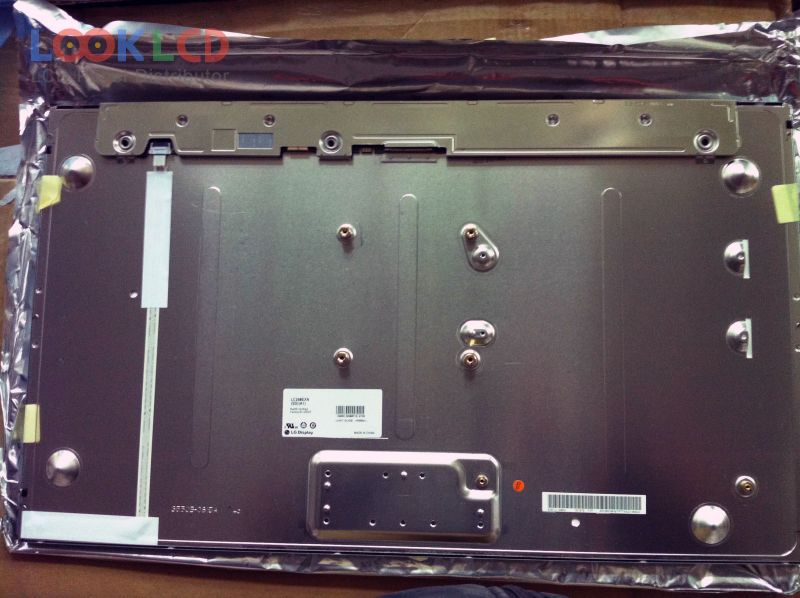

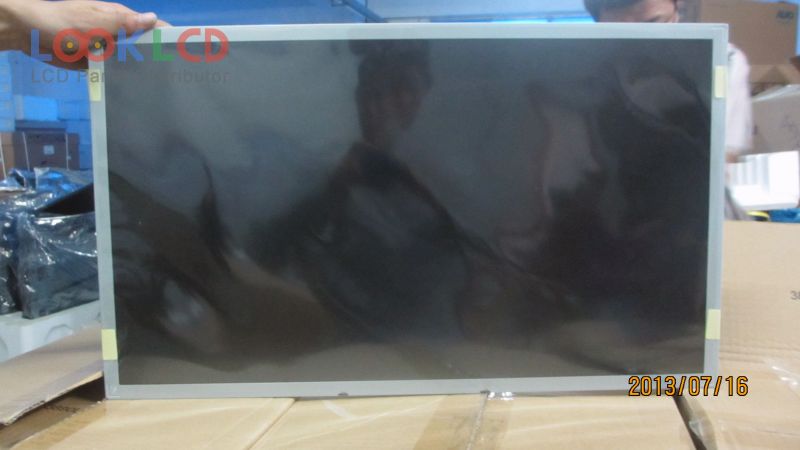

| Artikelnummer | LC260EXN-SDA1 |
| Marke | LG Display |
| Größe | 26.0 |
| Anwendung | LCTV |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 1000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | LG Display |
| Panel-Modell | LC260EXN-SDA1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 26.0 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | S-IPS, Normally Black, Transmissive |
| aktiver Bereich | 575.769×323.712 mm |
| Umriss | 609.8×357.8×18.5 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 1000:1 (Typ.) |
| Farben anzeigen | 16.7M (6-bit + Hi-FRC), CIE193168% |
| Reaktionszeit | 6 (Typ.)(G to G) |
| Blickwinkel | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 30 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
