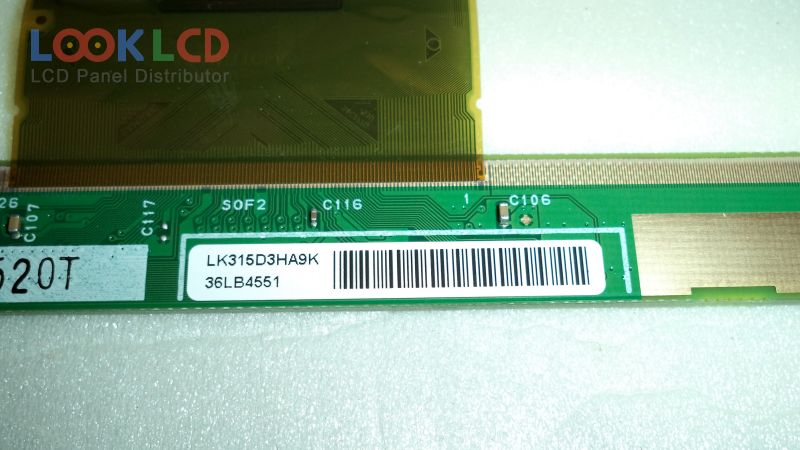

| Artikelnummer | LK315D3HA9K |
| Marke | SHARP |
| Größe | 31.5 |
| Anwendung | LCTV |
| Auflösung | 1920×1080 |
| Komposition | CELL |
| Helligkeit | 0 |
| CR | 4000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | LVDS |
| Panel-Marke | SHARP |
| Panel-Modell | LK315D3HA9K |
| Plattentyp | a-Si TFT-LCD , CELL |
| Panelgröße | 31.5 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | ASV, Normally Black, Transmissive |
| aktiver Bereich | 698.4×392.85 mm |
| Umriss | 710.5×404.7 mm |
| Oberfläche | Antiglare (Haze 3%), Hard coating (2H) |
| Glastiefe | 0.70+0.70 mm |
| Kontrastverhältnis | 4000:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit) |
| Reaktionszeit | 7 (Typ.)(G to G) |
| Blickwinkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signalschnittstelle | LVDS (2 ch, 8-bit), 59 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
