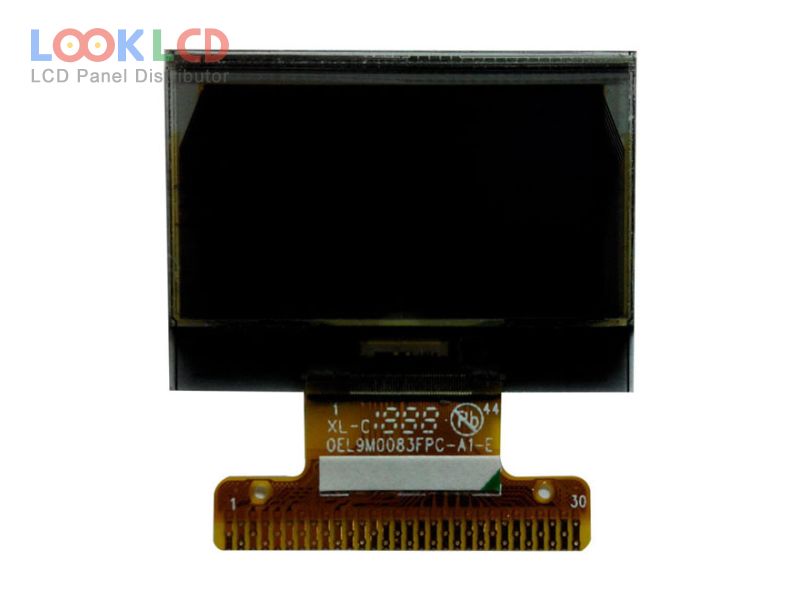

| Artikelnummer | OEL9M0083-Y-E |
| Marke | Other |
| Größe | 0.96 |
| Anwendung | |
| Auflösung | 128×64 |
| Komposition | OLED |
| Helligkeit | |
| CR | 10000:1 |
| Farben | Mono(Yellow) |
| Hintergrundbeleuchtung | self |
| Schnittstelle | CPU/SPI/I²C |
| Panel-Marke | TRULY |
| Panel-Modell | OEL9M0083-Y-E |
| Plattentyp | PM-OLED , OLED |
| Panelgröße | 0.96 inch |
| Auflösung | 128×64 |
| aktiver Bereich | 21.74×11.175 mm |
| Umriss | 26.7×19.26×1.65 mm |
| Oberfläche | |
| Helligkeit | |
| Kontrastverhältnis | 10000 : 1 (Min.) |
| Farben anzeigen | Mono(Yellow) (1-bit) |
| Blickwinkel | 80/80/80/80 (Min.)(L/R/U/D) |
| Frequenz | 100Hz |
| Treiber-IC | COG Built-in SH1106G |
| Signalschnittstelle | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
