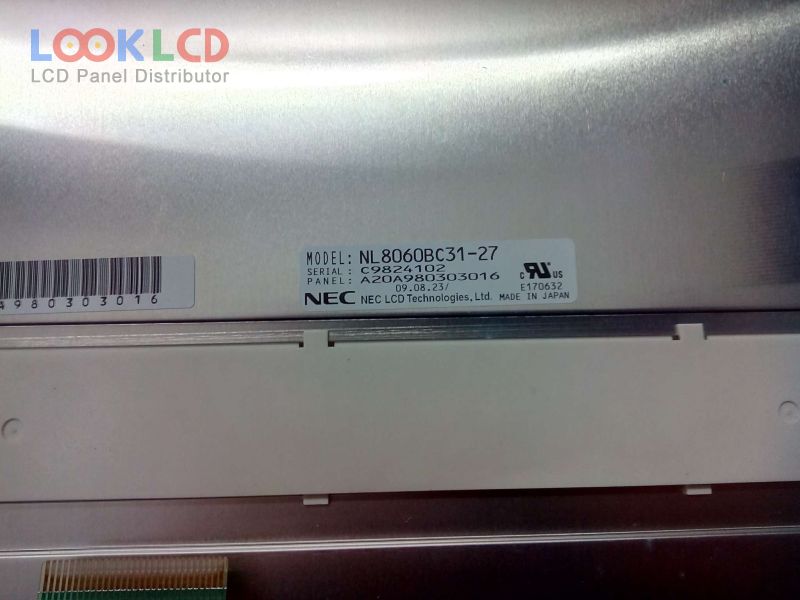

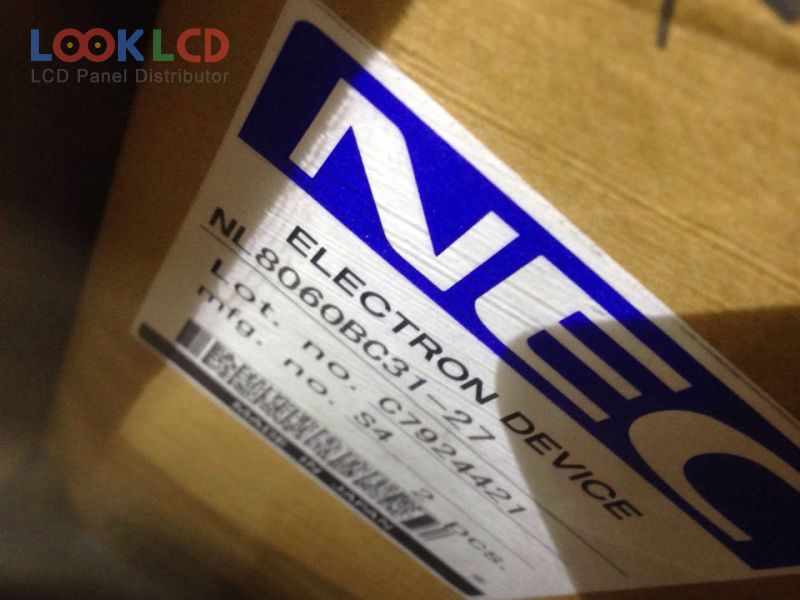

| Artikelnummer | NL8060BC31-27 |
| Marke | NLT |
| Größe | 12.1 |
| Anwendung | IA |
| Auflösung | 800×600 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 600:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | TTL |
| Panel-Marke | NEC |
| Panel-Modell | NL8060BC31-27 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 12.1 inch |
| Auflösung | 800(RGB)×600 , SVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 246×184.5 mm |
| Umriss | 280×210×13.7 mm |
| Oberfläche | Clear, Hard coating (3H) |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 600:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193140% |
| Reaktionszeit | 8/25 (Typ.)(Tr/Td) |
| Blickwinkel | 70/70/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 pcsCCFLWithout Driver |
| Signalschnittstelle | CMOS (1 ch, 6-bit), 41 pins |
| Eingangsspannung | 3.3/5.0V (Typ.) |
| rohs: | |
| Anwendung | IA |
| NL8060AC26-04 | NLT | 10.4 | 800×600 |
| NL8060AC26-05 | NLT | 10.4 | 800×600 |
| NL8060BC21-02 | NLT | 8.4 | 800×600 |
| NL8060BC26-11 | NLT | 10.4 | 800×600 |
| NL8060BC26-13 | NLT | 10.4 | 800×600 |
| NL8060BC26-17 | NLT | 10.4 | 800×600 |
| NL8060BC31-13A | NLT | 12.1 | 800×600 |
| NL8060BC31-27 | NLT | 12.1 | 800×600 |
| NL8060BC31-27D | NLT | 12.1 | 800×600 |
| NL8060BC31-41D | NLT | 12.1 | 800×600 |
| EL320.240.36 AG | Lumineq | 5.7 | 320×240 |
| G070VVN01.0 | AUO | 7.0 | 800×480 |
| G101STN01.2 | AUO | 10.1 | 1024×600 |
| G150XTN02.0 | AUO | 15.0 | 1024×768 |
| LB104S01-TL01 | LG Display | 10.4 | 800×600 |
| LQ104V1LG81 | SHARP | 10.4 | 640×480 |
| LQ9D340 | SHARP | 8.4 | 640×480 |
| LT085AC18N00 | TOSHIBA | 8.5 | 800×480 |
| PD064VT8 | E Ink | 6.4 | 640×480 |
| PM070WL1 | E Ink | 7.0 | 800×480 |
