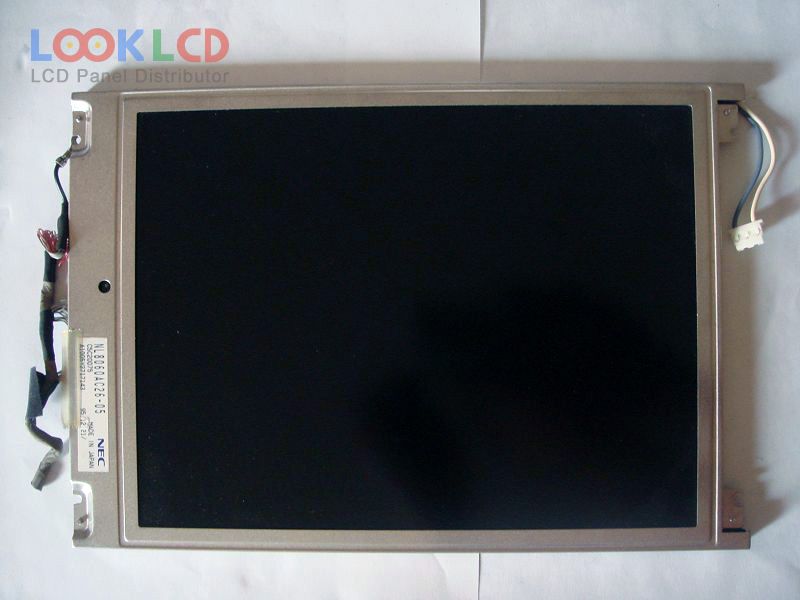

| Artikelnummer | NL8060AC26-05 |
| Marke | NLT |
| Größe | 10.4 |
| Anwendung | IA |
| Auflösung | 800×600 |
| Komposition | LCM |
| Helligkeit | 70 |
| CR | 150:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | TTL |
| Panel-Marke | NEC |
| Panel-Modell | NL8060AC26-05 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.4 inch |
| Auflösung | 800(RGB)×600 , SVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 211.2×158.4 mm |
| Umriss | 264×180 mm |
| Oberfläche | Antireflection |
| Helligkeit | 70 cd/m² (Typ.) |
| Kontrastverhältnis | 150:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193142% |
| Reaktionszeit | 40 (Max.)(Tr) |
| Blickwinkel | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | CMOS (1 ch, 6-bit), 41 pins |
| Eingangsspannung | 3.3/5.0V (Typ.)(VCC) |
| Anwendung | IA |
