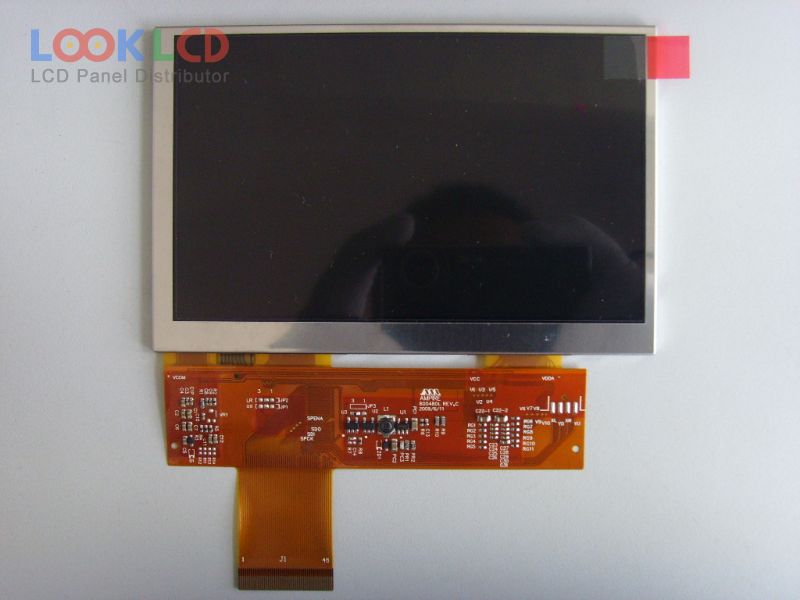

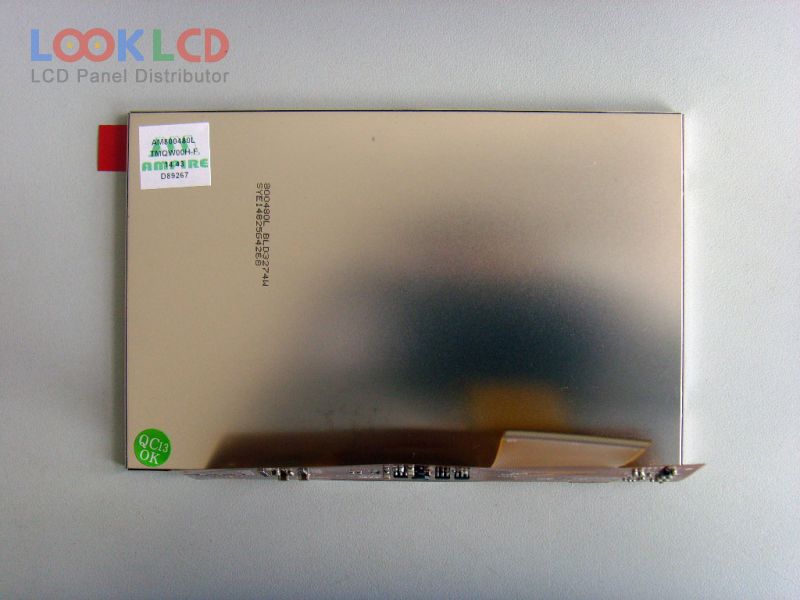

| Artikelnummer | AM-800480LTMQW-00H-F |
| Marke | AMPIRE |
| Größe | 5.0 |
| Anwendung | IA |
| Auflösung | 800×480 |
| Komposition | LCM |
| Helligkeit | 450 |
| CR | 250:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | AMPIRE |
| Panel-Modell | AM-800480LTMQW-00H-F |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 5.0 inch |
| Auflösung | 800(RGB)×480 , WVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 108×64.8 mm |
| Umriss | 119×77.1×3.41 mm |
| Oberfläche | Glare (Haze 0%) |
| Helligkeit | 450 cd/m² (Typ.) |
| Kontrastverhältnis | 250:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193152% |
| Reaktionszeit | 15/35 (Typ.)(Tr/Td) |
| Blickwinkel | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 3S6PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 8-bit), 45 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
