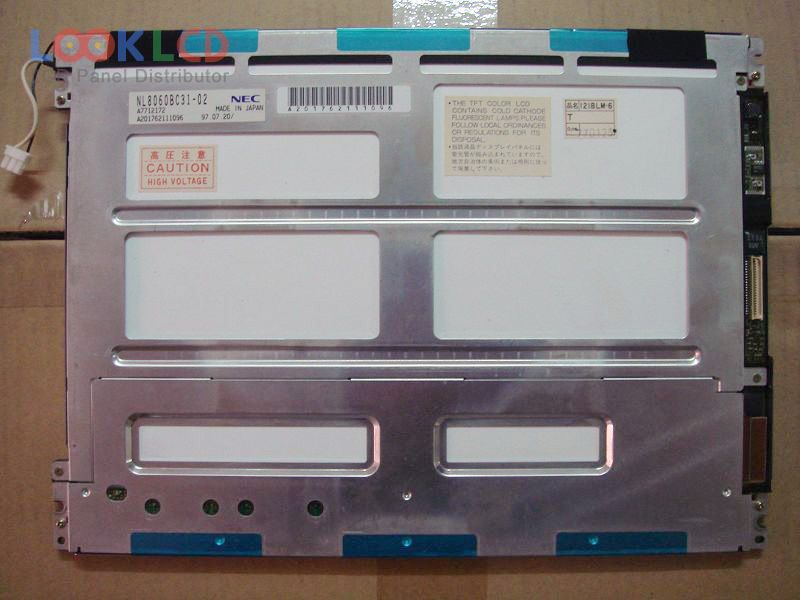

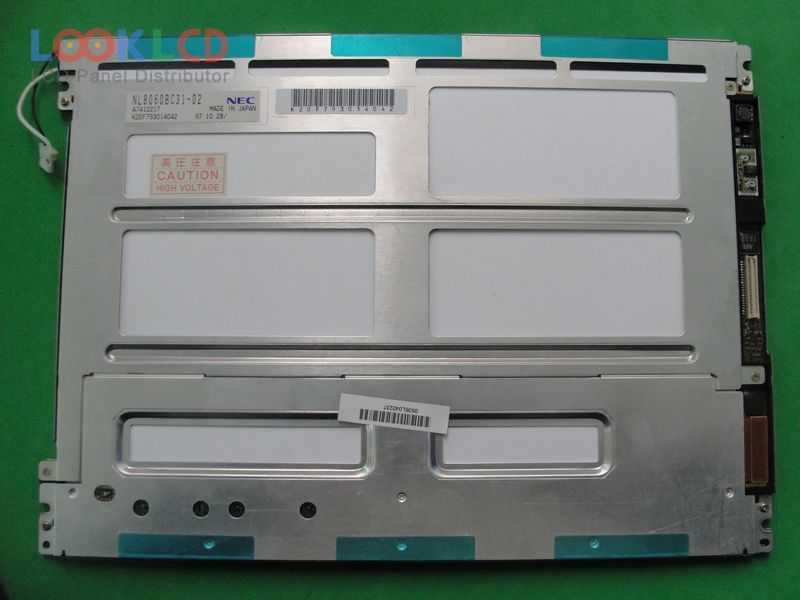

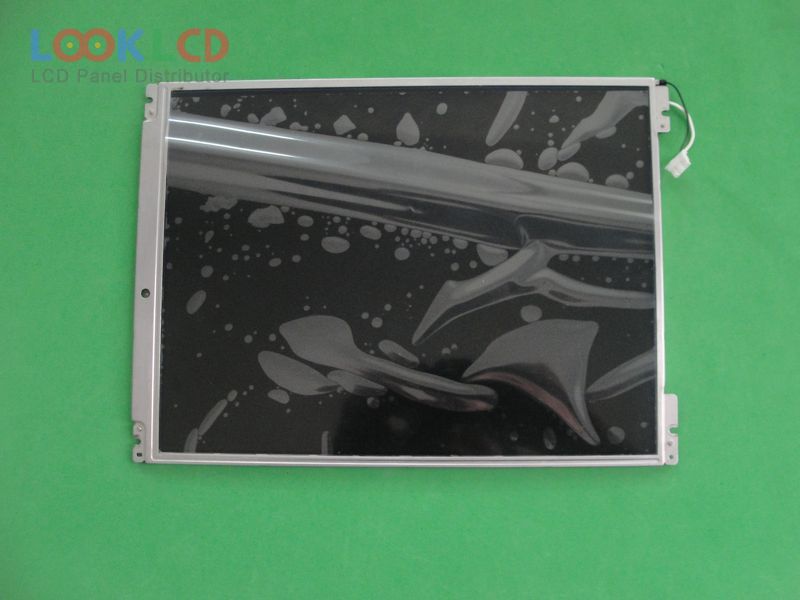

| Artikelnummer | NL8060BC31-02 |
| Marke | NLT |
| Größe | 12.1 |
| Anwendung | IA |
| Auflösung | 800×600 |
| Komposition | LCM |
| Helligkeit | 90 |
| CR | 150:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | TTL |
| Panel-Marke | NEC |
| Panel-Modell | NL8060BC31-02 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 12.1 inch |
| Auflösung | 800(RGB)×600 , SVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 246×184.5 mm |
| Umriss | 275×199×8 mm |
| Oberfläche | Antireflection |
| Helligkeit | 90 cd/m² (Typ.) |
| Kontrastverhältnis | 150:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193142% |
| Reaktionszeit | 40 (Typ.)(Tr) |
| Blickwinkel | 50/50/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | CMOS (1 ch, 6-bit), 41 pins |
| Eingangsspannung | 3.3/5.0V (Typ.)(VCC) |
| Anwendung | IA |
| NL8060AC26-04 | NLT | 10.4 | 800×600 |
| NL8060AC26-11 | NLT | 10.4 | 800×600 |
| NL8060BC21-02 | NLT | 8.4 | 800×600 |
| NL8060BC21-03 | NLT | 8.4 | 800×600 |
| NL8060BC26-13 | NLT | 10.4 | 800×600 |
| NL8060BC26-27 | NLT | 10.4 | 800×600 |
| NL8060BC26-30C | NLT | 10.4 | 800×600 |
| NL8060BC26-30D | NLT | 10.4 | 800×600 |
| NL8060BC31-17 | NLT | 12.1 | 800×600 |
| NL8060BC31-28D | NLT | 12.1 | 800×600 |
| AA070MC11 | Mitsubishi | 7.0 | 800×480 |
| DMF50081NB-FW | Kyocera | 4.7 | 320×240 |
| G121I1-L01 | Innolux | 12.1 | 1280×800 |
| G150XGE-L06 | Innolux | 15.0 | 1024×768 |
| G170ETN01.0 | AUO | 17.0 | 1280×1024 |
| KG057QV1DB-G00 | Kyocera | 5.7 | 320×240 |
| MD400F640PD5 | Panasonic | 9.8 | 640×400 |
| NL4823BC37-05 | NLT | 7.0 | 480×234 |
| PD080SL2 | E Ink | 8.0 | 800×600 |
| RGC11096096FR007 | RiTdisplay | 1.1 | 96×96 |
