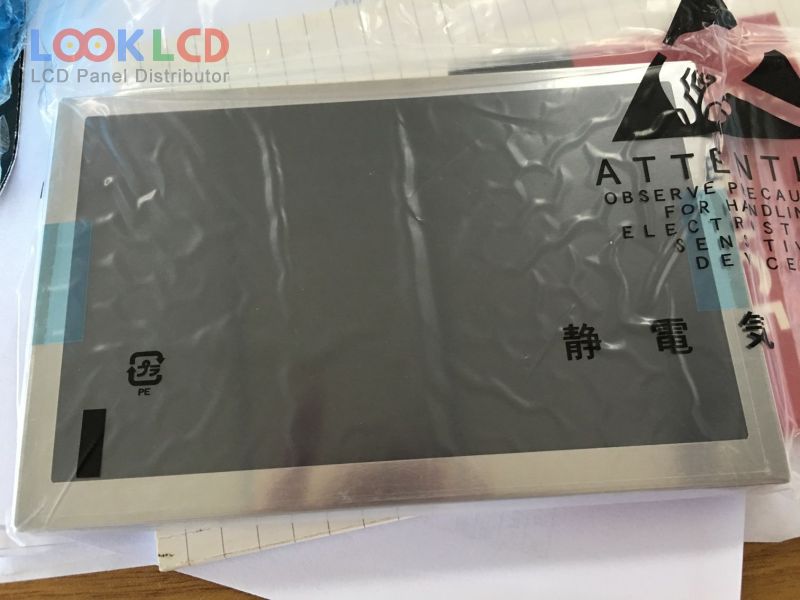

| Artikelnummer | AA070MC11 |
| Marke | Mitsubishi |
| Größe | 7.0 |
| Anwendung | IA |
| Auflösung | 800×480 |
| Komposition | LCM |
| Helligkeit | 1300 |
| CR | 1000:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | Mitsubishi |
| Panel-Modell | AA070MC11 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 7.0 inch |
| Auflösung | 800(RGB)×480 , WVGA |
| Anzeigemodus | IPS, Normally Black, Transmissive |
| aktiver Bereich | 152.4×91.44 mm |
| Umriss | 169.8×109.7×9.4 mm |
| Oberfläche | Clear, Hard coating (3H) |
| Helligkeit | 1300 cd/m² (Typ.) |
| Kontrastverhältnis | 1000:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 8-bit), CIE193150% |
| Reaktionszeit | 12/12 (Typ.)(Tr/Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 stringsWLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
