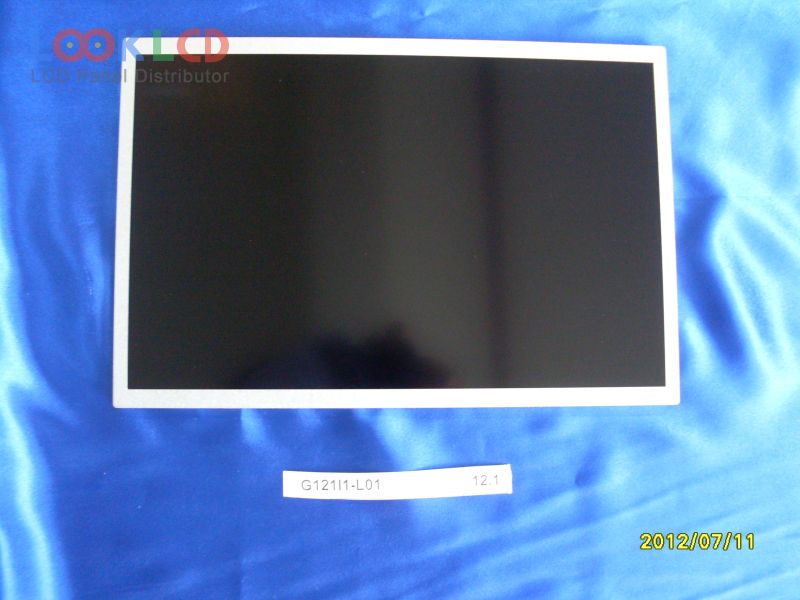

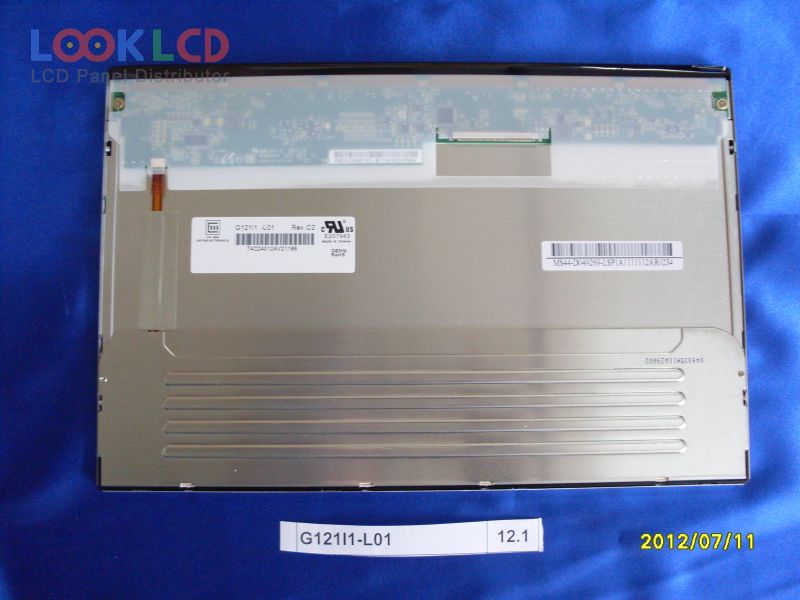

| Artikelnummer | G121I1-L01 |
| Marke | Innolux |
| Größe | 12.1 |
| Anwendung | IA |
| Auflösung | 1280×800 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 1000:1 |
| Farben | 262K/16.2M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | CMO |
| Panel-Modell | G121I1-L01 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 12.1 inch |
| Auflösung | 1280(RGB)×800 , WXGA |
| Anzeigemodus | MVA, Normally Black, Transmissive |
| aktiver Bereich | 261.12×163.2 mm |
| Umriss | 278×184×10.5 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 1000:1 (Typ.) |
| Farben anzeigen | 262K/16.2M (6-bit / 6-bit + FRC), CIE193145% |
| Reaktionszeit | 15/10 (Typ.)(Tr/Tf) |
| Blickwinkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 9S3PWLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
