| Artikelnummer | NL8060BC31-13A |
| Marke | NLT |
| Größe | 12.1 |
| Anwendung | NBPC |
| Auflösung | 800×600 |
| Komposition | LCM |
| Helligkeit | |
| CR | |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | NEC |

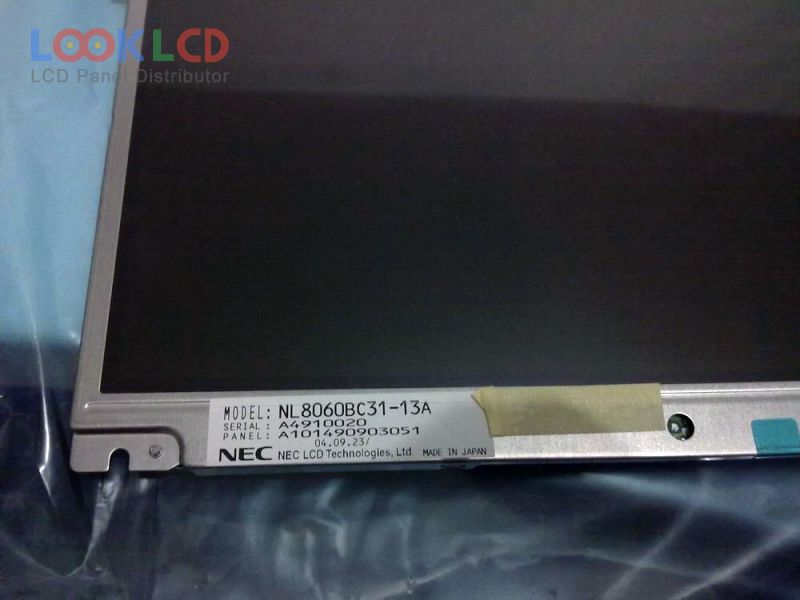

| Panel-Modell | NL8060BC31-13A |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 12.1 inch |
| Auflösung | 800(RGB)×600 , SVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 246×184.5 mm |
| Oberfläche | |
| Helligkeit | |
| Kontrastverhältnis | |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | |
| Blickwinkel | |
| Frequenz | 60Hz |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit) |
| Anwendung | NBPC |
