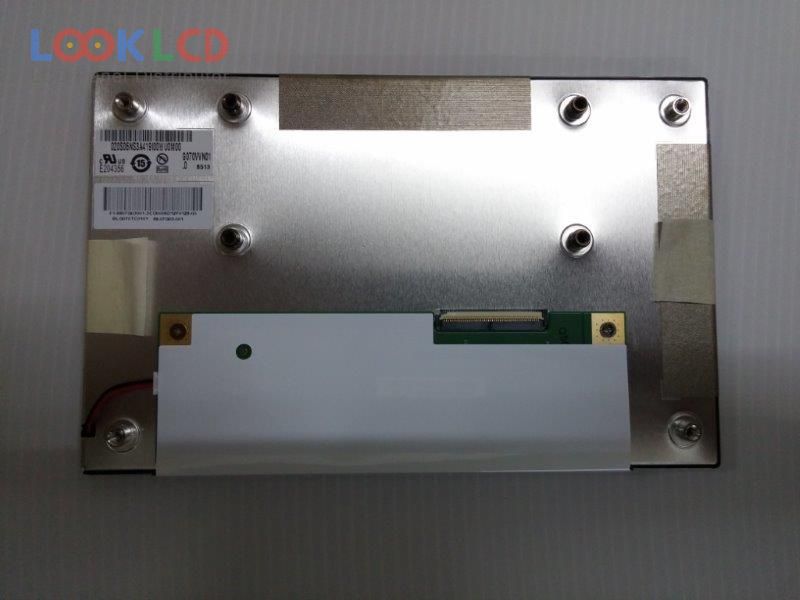

| Artikelnummer | G070VVN01.0 |
| Marke | AUO |
| Größe | 7.0 |
| Anwendung | IA |
| Auflösung | 800×480 |
| Komposition | LCM |
| Helligkeit | 450 |
| CR | 1500:1 |
| Farben | 262K/16.2M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | AUO |
| Panel-Modell | G070VVN01.0 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 7.0 inch |
| Auflösung | 800(RGB)×480 , WVGA |
| Anzeigemodus | AMVA, Normally Black, Transmissive |
| aktiver Bereich | 152.4×91.44 mm |
| Umriss | 164.55×104.71×11.8 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 450 cd/m² (Typ.) |
| Kontrastverhältnis | 1500:1 (Typ.) |
| Farben anzeigen | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| Reaktionszeit | 10/25 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 7S2PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6/8-bit), 50 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
