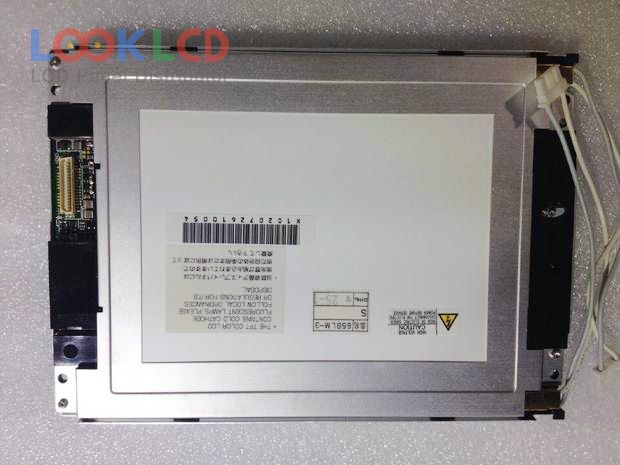

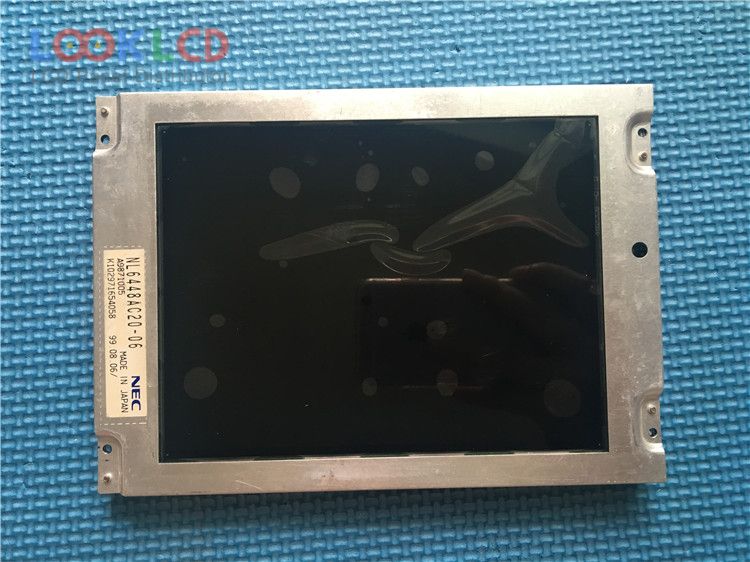

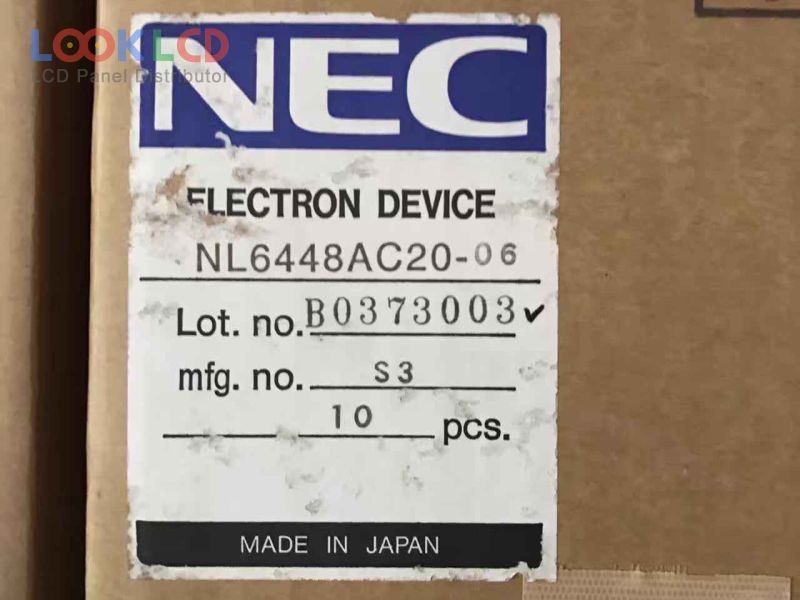

| Artikelnummer | NL6448AC20-06 |
| Marke | NLT |
| Größe | 6.5 |
| Anwendung | IA |
| Auflösung | 640×480 |
| Komposition | LCM |
| Helligkeit | 200 |
| CR | 150:1 |
| Farben | 4096/262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | TTL |
| Panel-Marke | NEC |
| Panel-Modell | NL6448AC20-06 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 6.5 inch |
| Auflösung | 640(RGB)×480 , VGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 132.48×99.36 mm |
| Umriss | 178.8×126.8 mm |
| Oberfläche | |
| Helligkeit | 200 cd/m² (Typ.) |
| Kontrastverhältnis | 150:1 (Typ.) |
| Farben anzeigen | 4096/262K (4-bit / 6-bit), CIE193145% |
| Reaktionszeit | 40 (Typ.)(Tr) |
| Blickwinkel | 50/50/35/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 pcsCCFLEmbedded (Inverter) |
| Signalschnittstelle | CMOS (1 ch, 4/6-bit), 31 pins |
| Eingangsspannung | 5.0V (Typ.) |
| Anwendung | IA |
