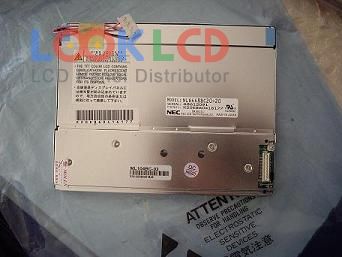

| Artikelnummer | NL6448BC20-20 |
| Marke | NLT |
| Größe | 6.5 |
| Anwendung | IA |
| Auflösung | 640×480 |
| Komposition | LCM |
| Helligkeit | 650 |
| CR | 600:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | TTL |
| Panel-Marke | NEC |
| Panel-Modell | NL6448BC20-20 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 6.5 inch |
| Auflösung | 640(RGB)×480 , VGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 132.48×99.36 mm |
| Umriss | 153×118 mm |
| Oberfläche | Clear, Hard coating (2H), Antireflection |
| Helligkeit | 650 cd/m² (Typ.) |
| Kontrastverhältnis | 600:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193140% |
| Reaktionszeit | 6/19 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 pcsCCFLWithout Driver |
| Signalschnittstelle | CMOS (1 ch, 6-bit), 31 pins |
| Eingangsspannung | 3.3/5.0V (Typ.)(VCC) |
| rohs: | |
| Anwendung | IA |
| NL6448AC33-15 | NLT | 10.4 | 640×480 |
| NL6448BC18-01F | NLT | 5.7 | 640×480 |
| NL6448BC18-03F | NLT | 5.7 | 640×480 |
| NL6448BC20-08 | NLT | 6.5 | 640×480 |
| NL6448BC26-17 | NLT | 8.4 | 640×480 |
| NL6448BC26-25 | NLT | 8.4 | 640×480 |
| NL6448BC28-01 | NLT | 9.0 | 640×480 |
| NL6448BC33-46 | NLT | 10.4 | 640×480 |
| NL6448BC33-49 | NLT | 10.4 | 640×480 |
| NL6448BC33-59D | NLT | 10.4 | 640×480 |
| AM-1024768MTMQW-00H | AMPIRE | 10.4 | 1024×768 |
| CLAA057VC01CT | CPT | 5.7 | 640×480 |
| G057QN01 V1 | AUO | 5.7 | 320×240 |
| G084SN05 V7 | AUO | 8.4 | 800×600 |
| G170J1-LE1 | Innolux | 17.0 | 1920×1200 |
| KG057QV1CA-G020 | Kyocera | 5.7 | 320×240 |
| LQ064V3DG05 | SHARP | 6.4 | 640×480 |
| LTM10C210 | TOSHIBA | 10.4 | 640×480 |
| TX23D85VM0BAA | KOE | 9.0 | 1280×768 |
| TX26D05VM1CAA | KOE | 10.4 | 640×480 |
