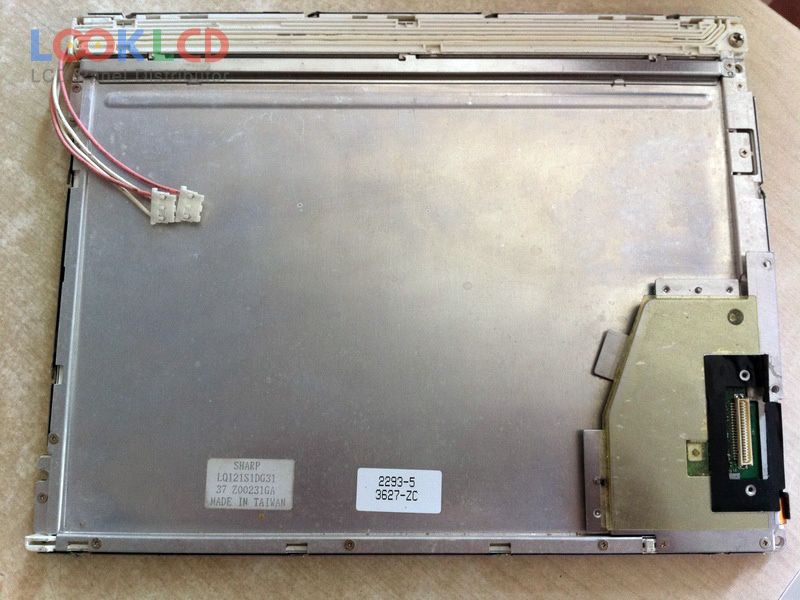

| Artikelnummer | LQ121S1DG31 |
| Marke | SHARP |
| Größe | 12.1 |
| Anwendung | IA |
| Auflösung | 800×600 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 300:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | TTL |
| Panel-Marke | SHARP |
| Panel-Modell | LQ121S1DG31 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 12.1 inch |
| Auflösung | 800(RGB)×600 , SVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 246×184.5 mm |
| Umriss | 276×209×14 mm |
| Oberfläche | Antiglare (Haze 28%), Hard coating (3H) |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 300:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 15/30 (Typ.)(Tr/Td) |
| Blickwinkel | 60/60/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 2 pcsCCFLWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit), 41 pins |
| Eingangsspannung | 3.3/5.0V (Typ.)(VCC) |
| Anwendung | IA |
