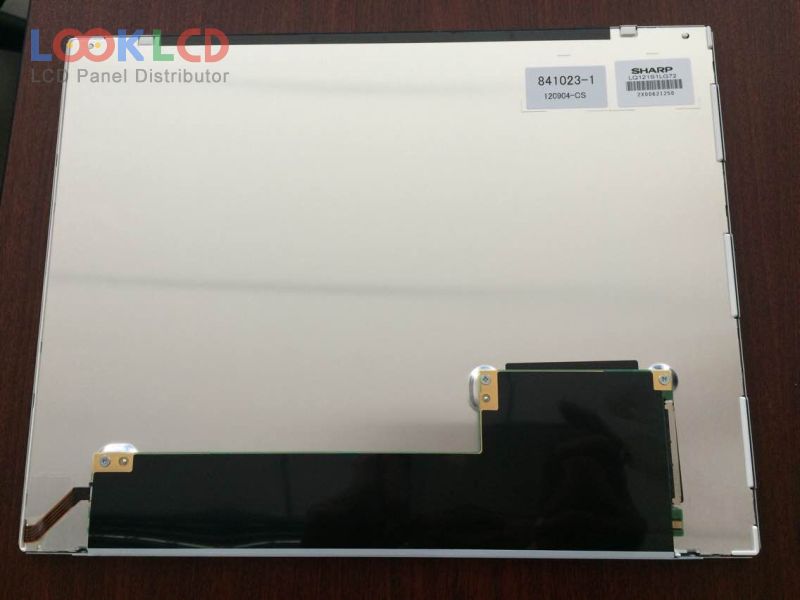

| Artikelnummer | LQ121S1LG72 |
| Marke | SHARP |
| Größe | 12.1 |
| Anwendung | GM |
| Auflösung | 800×600 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 900:1 |
| Farben | 16.2M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | SHARP |
| Panel-Modell | LQ121S1LG72 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 12.1 inch |
| Auflösung | 800(RGB)×600 , SVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 246×184.5 mm |
| Umriss | 265×205×10 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 900:1 (Typ.) |
| Farben anzeigen | 16.2M (6-bit + FRC), CIE193176% |
| Reaktionszeit | 30 (Typ.)(Tr+Td); 10 (Typ.)(G to G) |
| Blickwinkel | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | GM |
