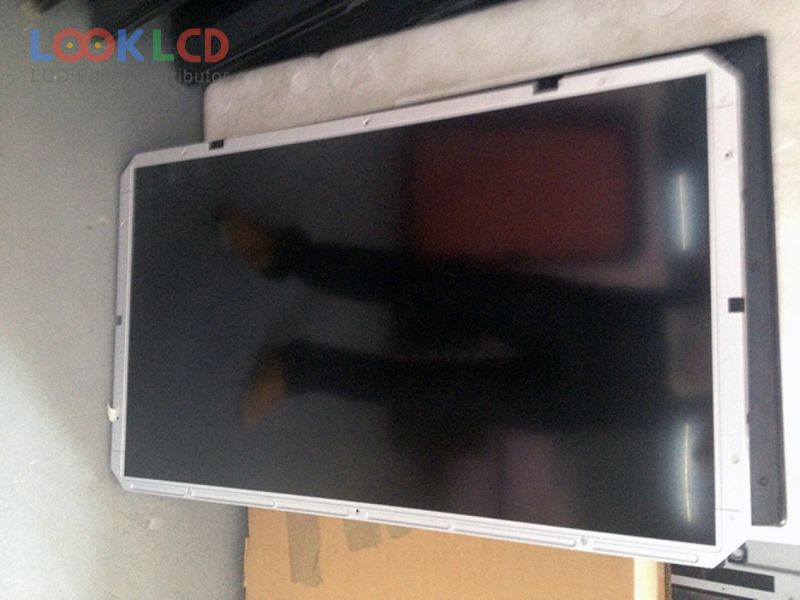

| Artikelnummer | LTY400HF06 |
| Marke | Samsung |
| Größe | 40 |
| Anwendung | LCTV |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 5000:1 |
| Farben | 1.07B |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | SAMSUNG |
| Panel-Modell | LTY400HF06 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 40 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | S-PVA, Normally Black, Transmissive |
| aktiver Bereich | 885.6×498.15 mm |
| Umriss | 952×551×61.2 mm |
| Oberfläche | Antiglare (Haze 4.5%), Hard coating (3H) |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 5000:1 (Typ.) |
| Farben anzeigen | 1.07B (8-bit + Hi-FRC), CIE193172% |
| Reaktionszeit | 12/6 (Typ.)(Tr/Td); 6.5 (Typ.)(G to G) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 10 pcsCCFLEmbedded (Inverter) |
| Signalschnittstelle | LVDS (2 ch, 10-bit), 55 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
