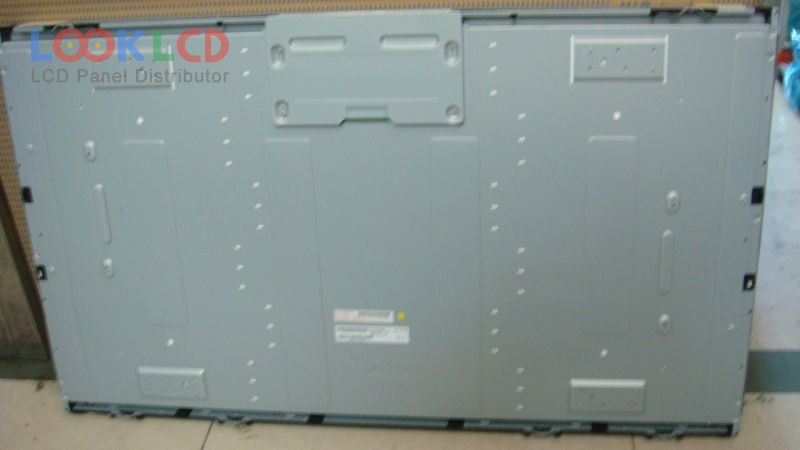

| Artikelnummer | T420XW01 V9 |
| Marke | AUO |
| Größe | 42 |
| Anwendung | LCTV |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 500 |
| CR | 1500:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | AUO |
| Panel-Modell | T420XW01 V9 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 42 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | AMVA, Normally Black, Transmissive |
| aktiver Bereich | 930.25×523.01 mm |
| Umriss | 983×576 mm |
| Oberfläche | Antiglare (Haze 40%), Hard coating (3H) |
| Helligkeit | 500 cd/m² (Typ.) |
| Kontrastverhältnis | 1500:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193172% |
| Reaktionszeit | 16/7 (Typ.)(Tr/Td); 6.5 (Typ.)(G to G) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 18 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 30 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
