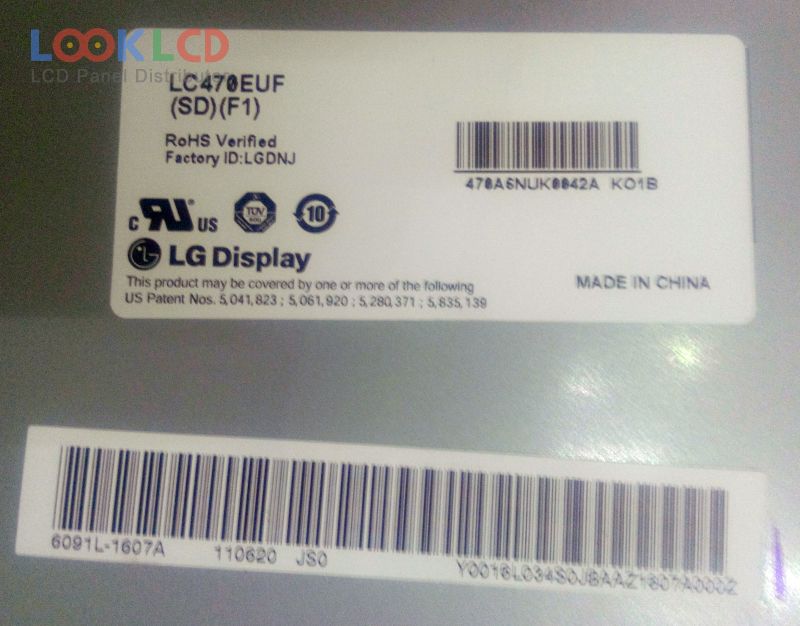

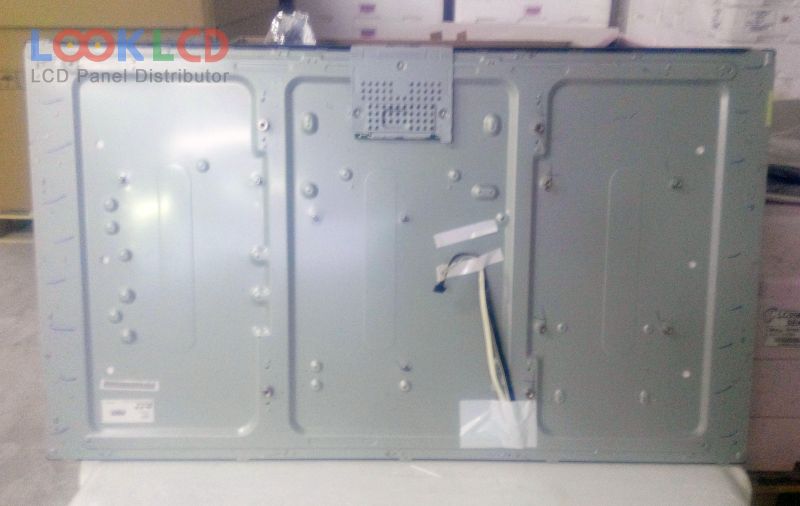

| Artikelnummer | LC470EUF-SDF1 |
| Marke | LG Display |
| Größe | 47 |
| Anwendung | LCTV |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 1600:1 |
| Farben | 16.7M/1.06B |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | LG Display |
| Panel-Modell | LC470EUF-SDF1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 47 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | S-IPS, Normally Black, Transmissive |
| aktiver Bereich | 1039.68×584.82 mm |
| Umriss | 1078.6×626 mm |
| Oberfläche | Antiglare (Haze 10%), Hard coating (2H) |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 1600:1 (Typ.) |
| Farben anzeigen | 16.7M/1.06B (8-bit / 8-bit + FRC), CIE193172% |
| Reaktionszeit | 5.0 (Typ.)(G to G); 6.0 (Typ.)(MPRT) |
| Blickwinkel | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 120Hz |
| Lampentyp | WLEDWithout Driver |
| Signalschnittstelle | LVDS (4 ch, 8/10-bit), 92 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
