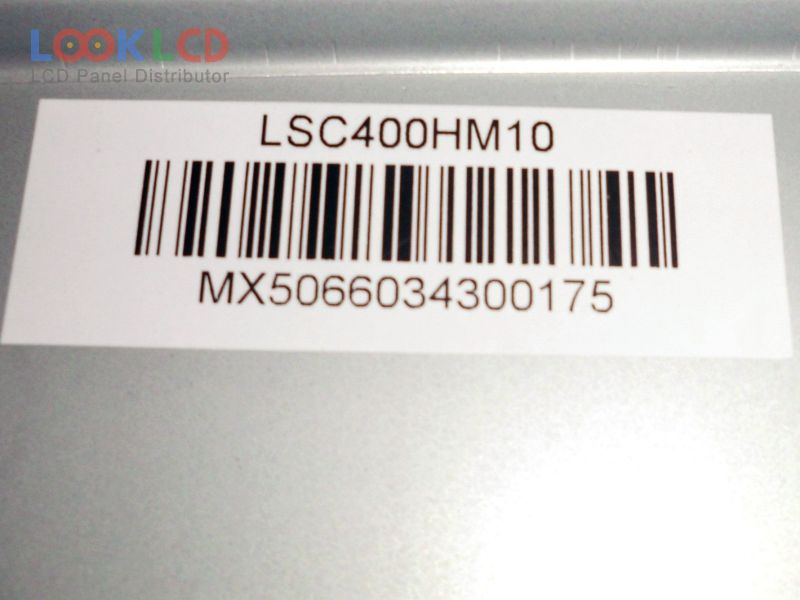

| Artikelnummer | LSC400HM10 |
| Marke | Samsung |
| Größe | 40 |
| Anwendung | LCTV |
| Auflösung | 1920×1080 |
| Komposition | CELL |
| Helligkeit | 0 |
| CR | 4000:1 |
| Farben | 1.07B |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | LVDS |
| Panel-Marke | SAMSUNG |
| Panel-Modell | LSC400HM10 |
| Plattentyp | a-Si TFT-LCD , CELL |
| Panelgröße | 40 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | PVA, Normally Black, Transmissive |
| aktiver Bereich | 885.6×498.15 mm |
| Umriss | 899.6×513.95 mm |
| Oberfläche | Antiglare |
| Glastiefe | 0.70+0.70 mm |
| Durchlässigkeit | 5.6% (Typ.)(with Polarizer) |
| Kontrastverhältnis | 4000:1 (Typ.) |
| Farben anzeigen | 1.07B (8-bit + Dithering), CIE193168% |
| Reaktionszeit | 8 (Typ.)(G to G) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signalschnittstelle | LVDS (2 ch, 10-bit), 51 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
