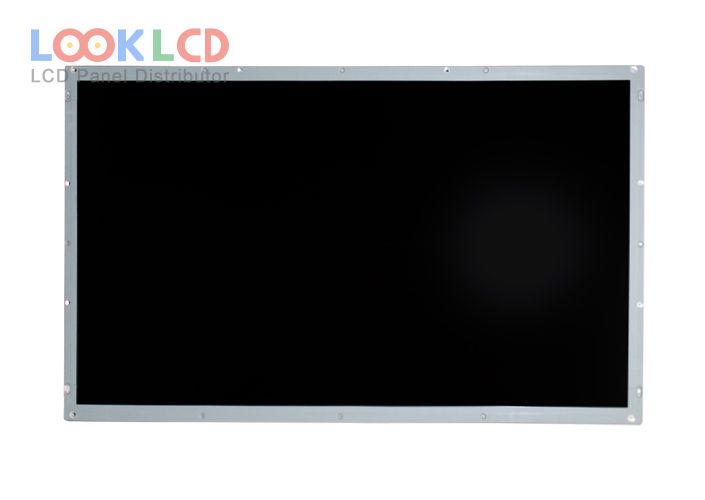

| Artikelnummer | V460H1-LS1 |
| Marke | Innolux |
| Größe | 46 |
| Anwendung | LCTV |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 6000:1 |
| Farben | 1.07B |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | CHIMEI INNOLUX |
| Panel-Modell | V460H1-LS1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 46 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | Super MVA, Normally Black, Transmissive |
| aktiver Bereich | 1018.08×572.67 mm |
| Umriss | 1076.5×634.7 mm |
| Oberfläche | Antiglare (Haze 11%), Hard coating (3H) |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 6000:1 (Typ.) |
| Farben anzeigen | 1.07B (8-bit + Hi-FRC), CIE193172% |
| Reaktionszeit | 6 (Typ.)(G to G) |
| Blickwinkel | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| Frequenz | 120Hz |
| Lampentyp | 4 stringsWLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (4 ch, 10-bit), 102 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
