| Artikelnummer | LSJ320AP04-E |
| Marke | Samsung |
| Größe | 31.5 |
| Anwendung | LCTV |
| Auflösung | 1366×768 |
| Komposition | CELL |
| Helligkeit | 0 |
| CR | 4000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | LVDS |
| Panel-Marke | SAMSUNG |

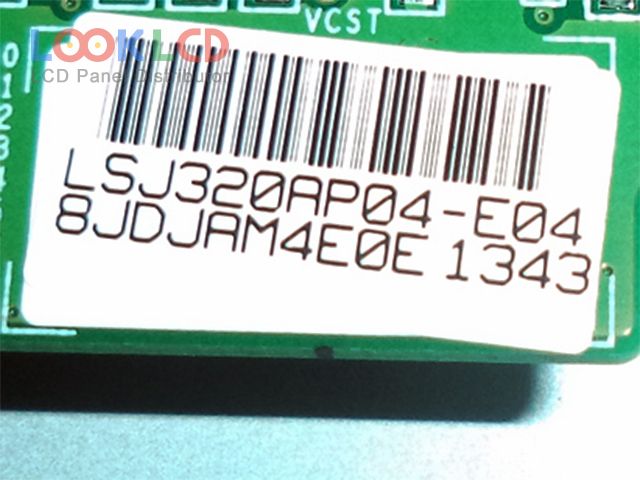

| Panel-Modell | LSJ320AP04-E |
| Plattentyp | a-Si TFT-LCD , CELL |
| Panelgröße | 31.5 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | SVA, Normally Black, Transmissive |
| aktiver Bereich | 697.685×392.256 mm |
| Umriss | 713×412.8 mm |
| Oberfläche | Antiglare (Haze 2%), Hard coating (2H) |
| Glastiefe | 0.70+0.70 mm |
| Kontrastverhältnis | 4000:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit) |
| Reaktionszeit | 10 (Typ.)(G to G) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |

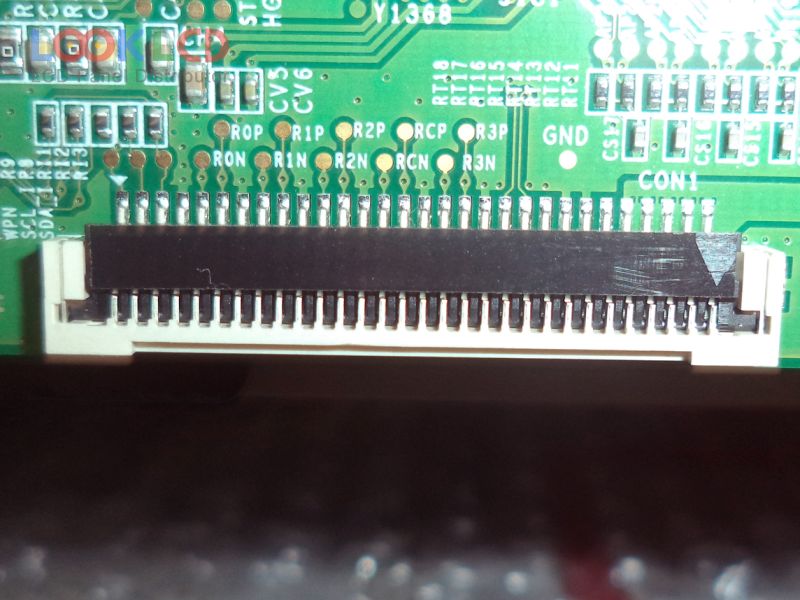

| Signalschnittstelle | LVDS (1 ch, 8-bit), 30 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | LCTV |
| LC320DXJ-SFK1 | LG Display | 31.5 | 1366×768 |
| LC320EUF-FEP1 | LG Display | 31.5 | 1920×1080 |
| LSJ320AP04-E | Samsung | 31.5 | 1366×768 |
| LTA320AN01-D | Samsung | 31.5 | 1366×768 |
| LTA320HJ02 | Samsung | 31.5 | 1920×1080 |
| LTA320HJ06 | Samsung | 31.5 | 1920×1080 |
| LTA320HN02-W | Samsung | 31.5 | 1920×1080 |
| P320HVN02.0 | AUO | 31.5 | 1920×1080 |
| T315HW07 V2 | AUO | 31.5 | 1920×1080 |
| T320HVN01.5 | AUO | 31.5 | 1920×1080 |
| LC320DXJ-SFA9 | LG Display | 31.5 | 1366×768 |
| LC420WUN-SDA1 | LG Display | 42 | 1920×1080 |
| LC470DUN-SFU2 | LG Display | 47 | 1920×1080 |
| LC550EUG-PFF1 | LG Display | 55 | 1920×1080 |
| LTA320WT-L08 | Samsung | 31.5 | 1366×768 |
| LTA460HJ14 | Samsung | 46 | 1920×1080 |
| T230XW01 V2 | AUO | 23.0 | 1366×768 |
| T400HW03 V6 | AUO | 40 | 1920×1080 |
| V400H1-L11 | Innolux | 40 | 1920×1080 |
| V850DK1-KD1 Rev.B1 | Innolux | 85 | 3840×2160 |
