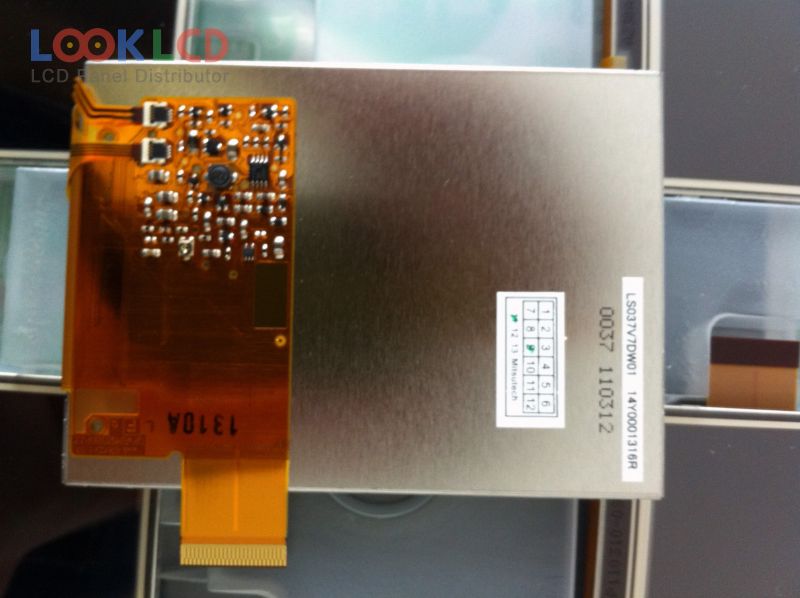

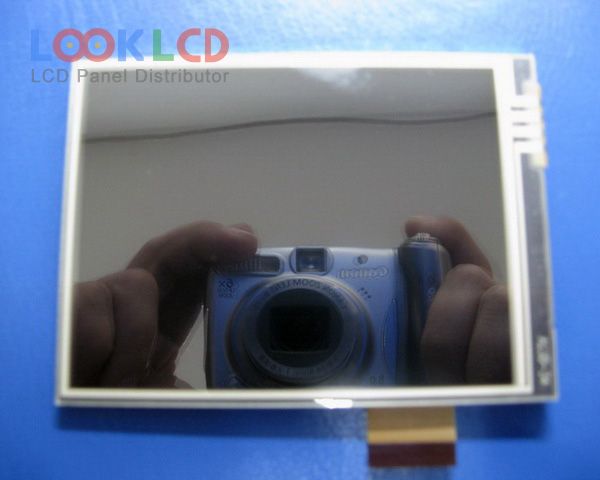

| Artikelnummer | LS037V7DW01 |
| Marke | SHARP |
| Größe | 3.7 |
| Anwendung | HHP |
| Auflösung | 480×640 |
| Komposition | LCM |
| Helligkeit | 165 |
| CR | 200:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | SHARP |
| Panel-Modell | LS037V7DW01 |
| Plattentyp | CG-Silicon , LCM |
| Panelgröße | 3.7 inch |
| Auflösung | 480(RGB)×640 , VGA |
| Anzeigemodus | Normally Black, Transflective |
| aktiver Bereich | 56.16×74.88 mm |
| Umriss | 65×89.2×6.4 mm |
| Oberfläche | Hard coating (3H) |
| Helligkeit | 165 cd/m² (Typ.) |
| Kontrastverhältnis | 200:1 (Typ.)(Transmissive)2:1 (Typ.)(Reflective) |
| Farben anzeigen | 262K (6-bit), CIE193135% |
| Reaktionszeit | 15/20 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| Lampentyp | WLED |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit), 51 pins |
| Eingangsspannung | 3.3V (Typ.)(VSHD) |
| Anwendung | HHP |
