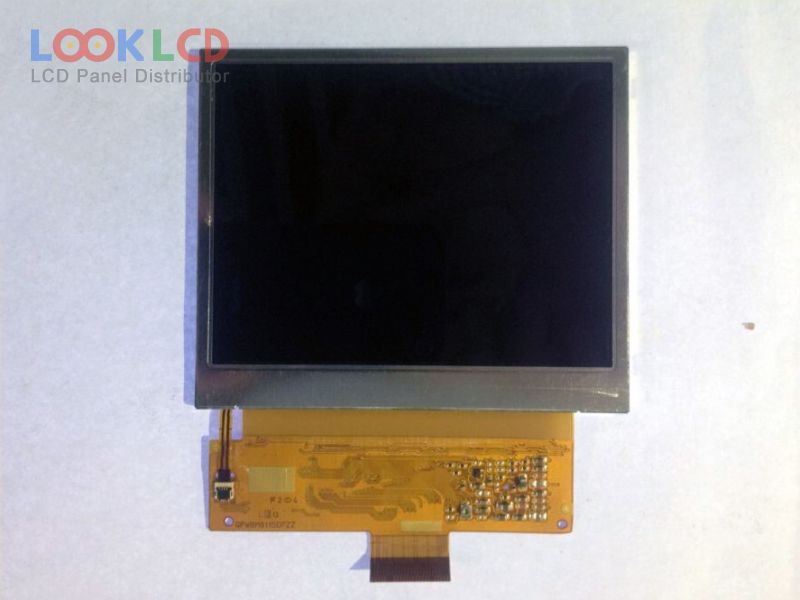

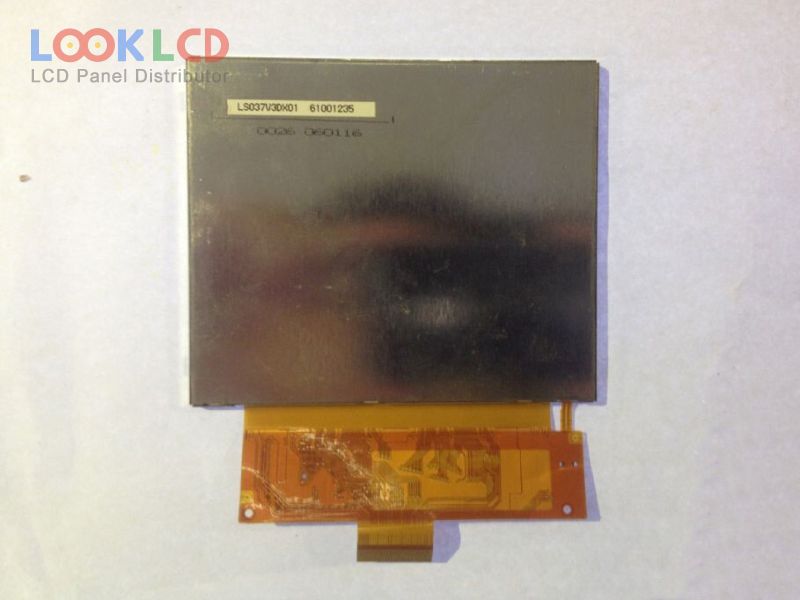

| Artikelnummer | LS037V3DX01 |
| Marke | SHARP |
| Größe | 3.7 |
| Anwendung | IA |
| Auflösung | 640×480 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 250:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | SHARP |
| Panel-Modell | LS037V3DX01 |
| Plattentyp | CG-Silicon , LCM |
| Panelgröße | 3.7 inch |
| Auflösung | 640(RGB)×480 , VGA |
| Anzeigemodus | Normally Black, Transmissive |
| aktiver Bereich | 74.88×56.16 mm |
| Umriss | 85×71.8 mm |
| Oberfläche | Hard coating (3H) |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 250:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193145% |
| Reaktionszeit | 15/20 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit), 51 pins |
| Eingangsspannung | 5.0/3.3/9.8/-6.5V (Typ.)(VSHD/VSHA/VDD/GVSS) |
| Anwendung | IA |
