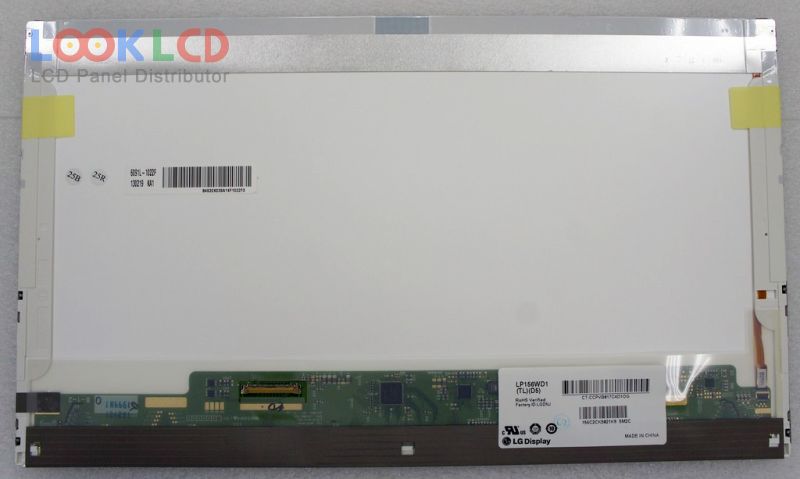

| Artikelnummer | LP156WD1-TLD5 |
| Marke | LG Display |
| Größe | 15.6 |
| Anwendung | NBPC |
| Auflösung | 1600×900 |
| Komposition | LCM |
| Helligkeit | 200 |
| CR | 300:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | LG Display |
| Panel-Modell | LP156WD1-TLD5 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.6 inch |
| Auflösung | 1600(RGB)×900 , HD+ |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 344.16×193.59 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Antiglare |
| Helligkeit | 200 cd/m² (Typ.) |
| Kontrastverhältnis | 300:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193160% |
| Reaktionszeit | |
| Blickwinkel | |
| Frequenz | 60Hz |
| Lampentyp | WLED |
| Signalschnittstelle | LVDS (2 ch, 6-bit) |
| Anwendung | NBPC |
| LP156WD1-TLD5 | LG Display | 15.6 | 1600×900 |
| LP156WF4-SPH3 | LG Display | 15.6 | 1920×1080 |
| LP156WH1-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLB1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLE1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLQB | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLA2 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLSA | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN1 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPB1 | LG Display | 15.6 | 1366×768 |
| B156HW01 V3 | AUO | 15.6 | 1920×1080 |
| B156XW04 V6 | AUO | 15.6 | 1366×768 |
| CLAA133WB01A | CPT | 13.3 | 1366×768 |
| LP140WD2-TLD2 | LG Display | 14.0 | 1600×900 |
| LP156UD1-SPA2 | LG Display | 15.6 | 3840×2160 |
| LTN150PF-L04 | Samsung | 15.0 | 1400×1050 |
| LTN154AT08-001 | Samsung | 15.4 | 1280×800 |
| LTN173KT01-B07 | Samsung | 17.3 | 1600×900 |
| N140HGE-EA1 | Innolux | 14.0 | 1920×1080 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
