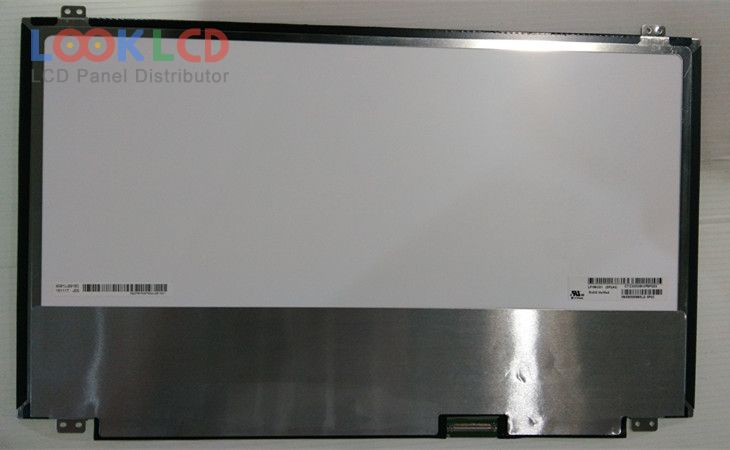

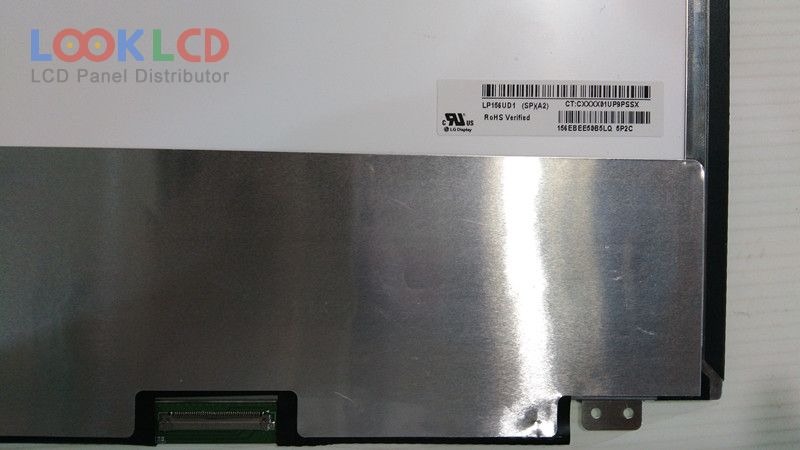

| Artikelnummer | LP156UD1-SPA2 |
| Marke | LG Display |
| Größe | 15.6 |
| Anwendung | NBPC |
| Auflösung | 3840×2160 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | eDP |
| Panel-Marke | LG Display |
| Panel-Modell | LP156UD1-SPA2 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.6 inch |
| Auflösung | 3840RG(BW)×2160 , UHD |
| Anzeigemodus | IPS, Normally Black, Transmissive |
| aktiver Bereich | 344.448×193.752 mm |
| Umriss | 359.5×223.8×2.9 mm |
| Formstil | Slim (PCBA Flat, Depth ≤3.2mm) |
| Oberfläche | Glare (Haze 0%), Hard coating (3H) |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193172% |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | eDP (4 Lanes), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
