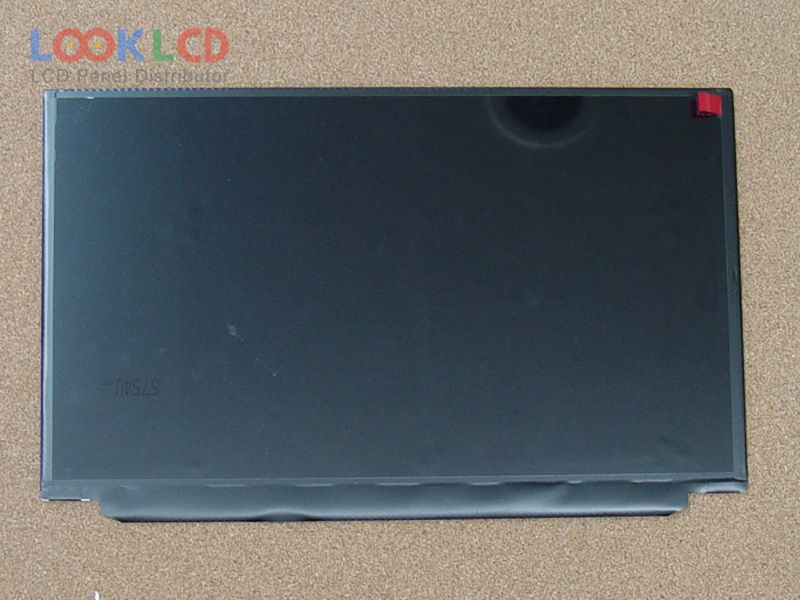

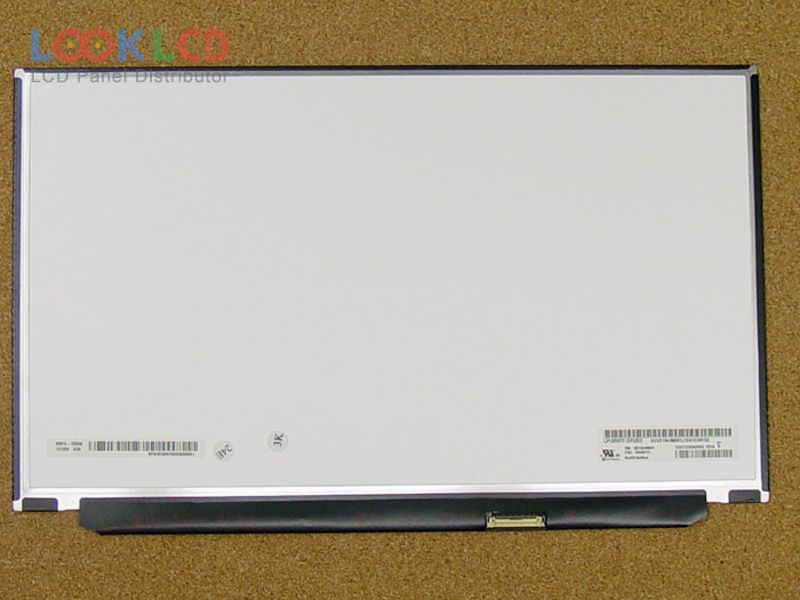

| Artikelnummer | LP125WF2-SPB2 |
| Marke | LG Display |
| Größe | 12.5 |
| Anwendung | NBPC |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 700:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | eDP |
| Panel-Marke | LG Display |
| Panel-Modell | LP125WF2-SPB2 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 12.5 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | IPS, Normally Black, Transmissive |
| aktiver Bereich | 276.48×155.52 mm |
| Umriss | 290.5×170.7×2.85 mm |
| Formstil | Slim (PCBA Flat, Depth ≤3.2mm) |
| Oberfläche | Antiglare |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 700:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193150% |
| Reaktionszeit | 35 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | eDP (2 Lanes), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
