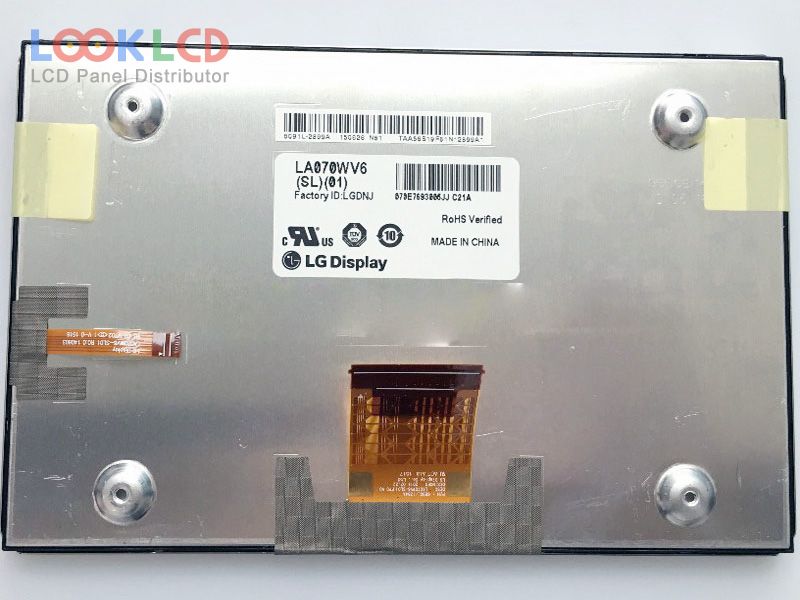

| Artikelnummer | LA070WV6-SL01 |
| Marke | LG Display |
| Größe | 7.0 |
| Anwendung | CNS |
| Auflösung | 800×480 |
| Komposition | LCM |
| Helligkeit | 810 |
| CR | 1000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | LG Display |
| Panel-Modell | LA070WV6-SL01 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 7.0 inch |
| Auflösung | 800(RGB)×480 , WVGA |
| Anzeigemodus | IPS, Normally Black, Transmissive |
| aktiver Bereich | 152.4×91.44 mm |
| Umriss | 164.55×105.01×10.2 mm |
| Oberfläche | Antiglare (Haze 25%), Hard coating (3H) |
| Helligkeit | 810 cd/m² (Typ.) |
| Kontrastverhältnis | 1000:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193160% |
| Reaktionszeit | 15/10 (Typ.)(Tr/Td) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6S3PWLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 50 pins |
| Eingangsspannung | 3.3/13.0/18.5/-7.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Anwendung | CNS |
