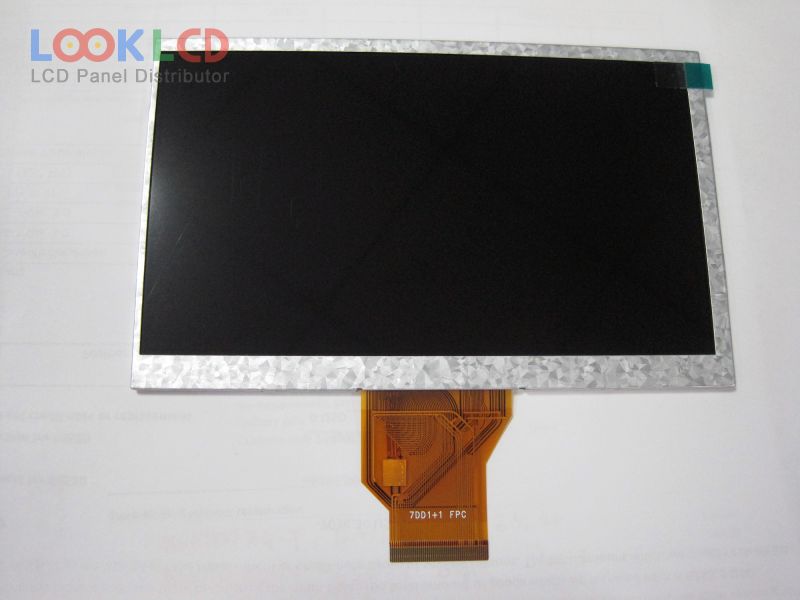

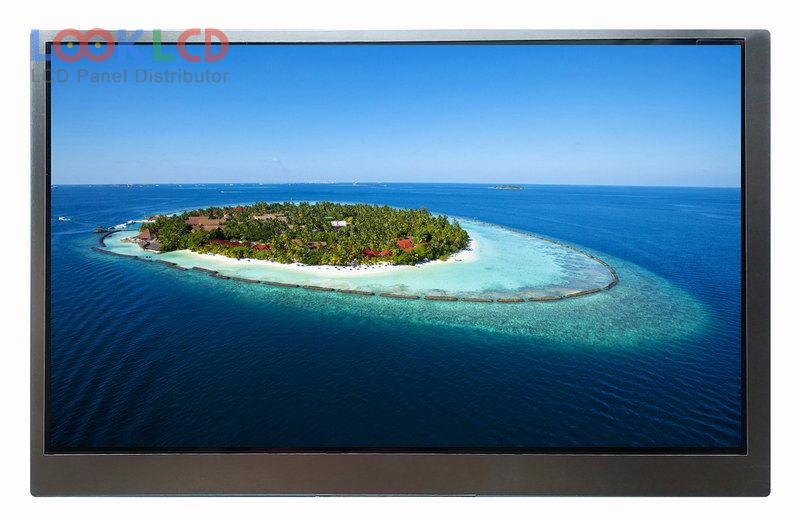

| Artikelnummer | DLC0700BZG-7 |
| Marke | Other |
| Größe | 7.0 |
| Anwendung | CNS |
| Auflösung | 800×480 |
| Komposition | LCM |
| Helligkeit | 700 |
| CR | 500:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | DLC |
| Panel-Modell | DLC0700BZG-7 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 7.0 inch |
| Auflösung | 800(RGB)×480 , WVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 154.08×85.92 mm |
| Umriss | 164.2×100 mm |
| Oberfläche | Antiglare |
| Helligkeit | 700 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Dithering), CIE193150% |
| Reaktionszeit | 10/15 (Typ.)(Tr/Td) |
| Blickwinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 3S10PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6/8-bit), 50 pins |
| Eingangsspannung | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Anwendung | CNS |
