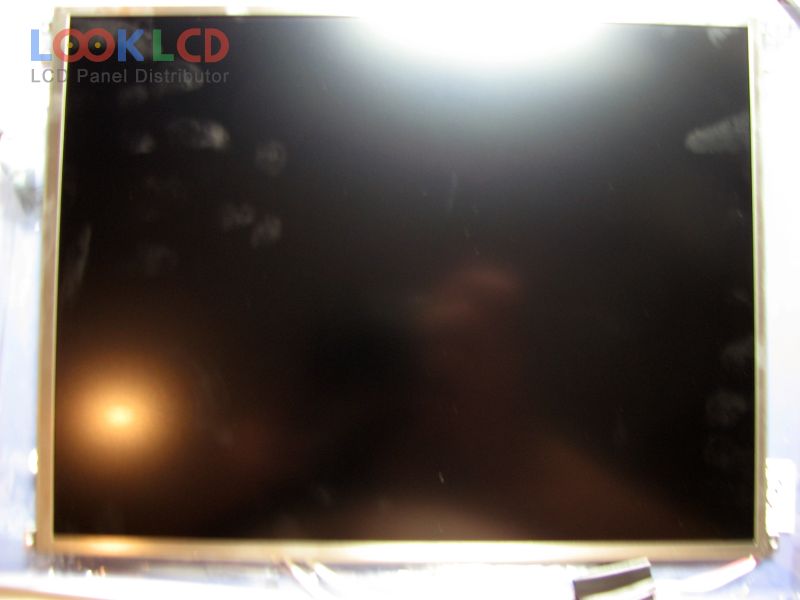

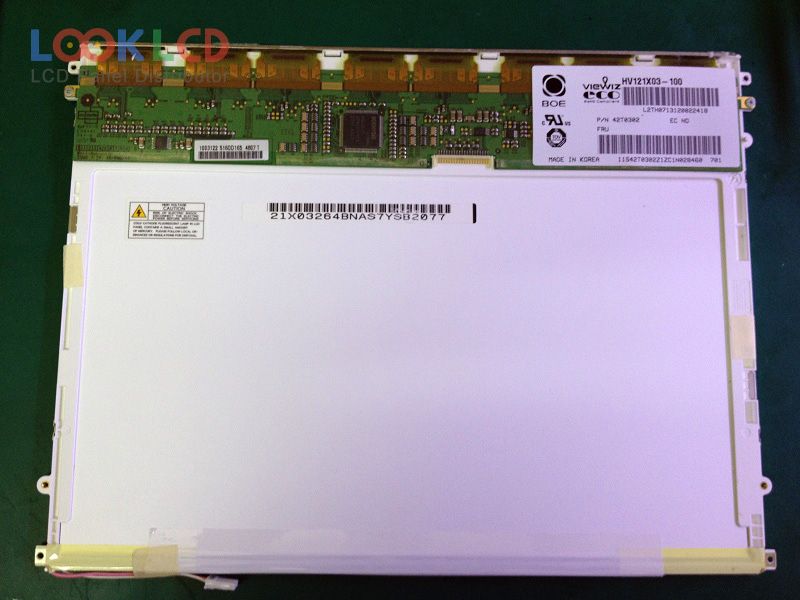

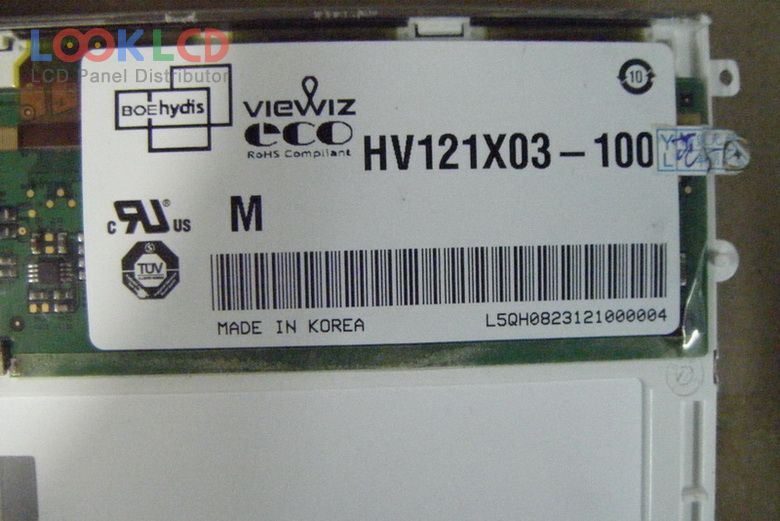

| Artikelnummer | HV121X03-100 |
| Marke | HYDIS |
| Größe | 12.1 |
| Anwendung | PAD |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 190 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | BOE HYDIS |
| Panel-Modell | HV121X03-100 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 12.1 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | AFFS, Normally Black, Transmissive |
| aktiver Bereich | 245.76×184.32 mm |
| Umriss | 270×199×7 mm |
| Oberfläche | Antiglare (Haze 40%), Hard coating (2H), Antireflection |
| Helligkeit | 190 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193144% |
| Reaktionszeit | 40 (Typ.)(Tr+Td) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | PAD |
